• PLC

    AF-10MR-A

    85V-240VAC, 6 points AC input 4 points relay output

    AF-10MR-D

    24VDC, 6points DC input 4 points (with analog input) relay output

    AF-10MR-E

    AF-20MR-A

    AF-20MR-D

    AF-20MR-E

    RS485

    SR-12MRAC

    SR-12MRDC

    SR-20ERA

    SR-22MRAC

    SR-22MRDC

    SR-DUSB

    ELC-26DC-DA-TN(PNP)

  • HMI and Text Panel

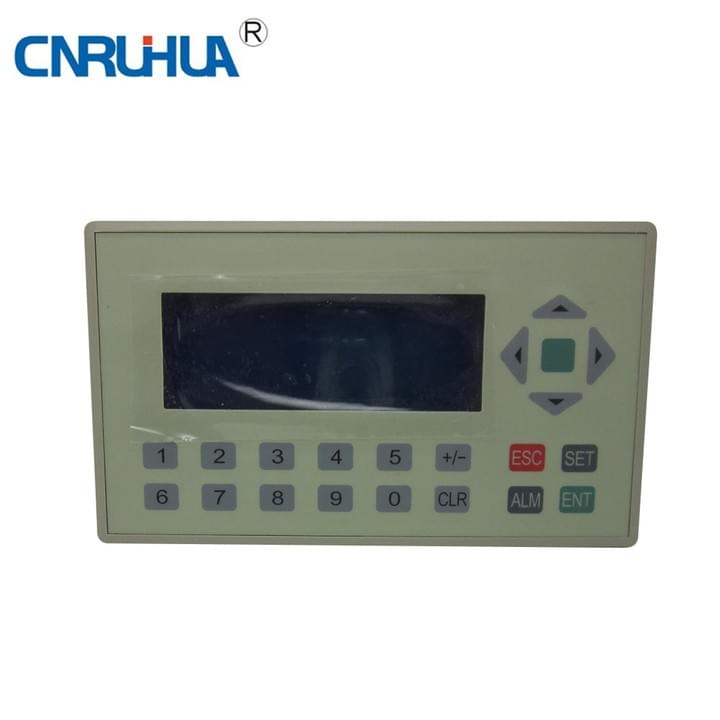

    4.3 inch Text panl for PLC

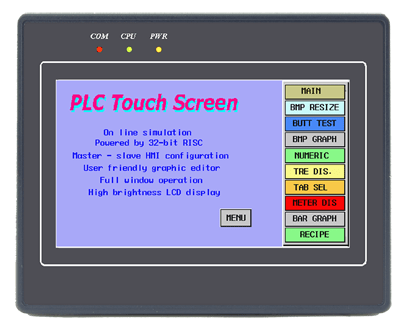

    Touch Screen for PLC

    we have 4.3inch , 7 inch , 10inch

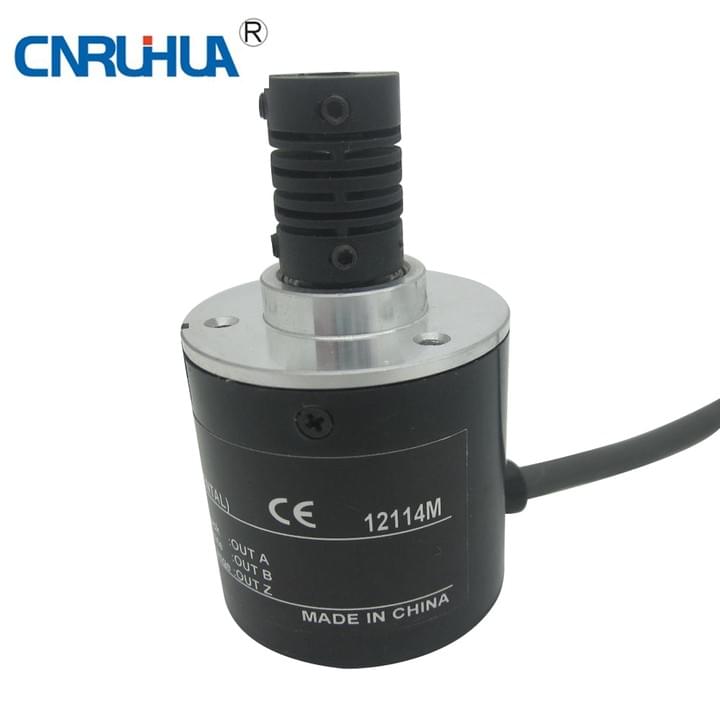

  • Rotary Encoder

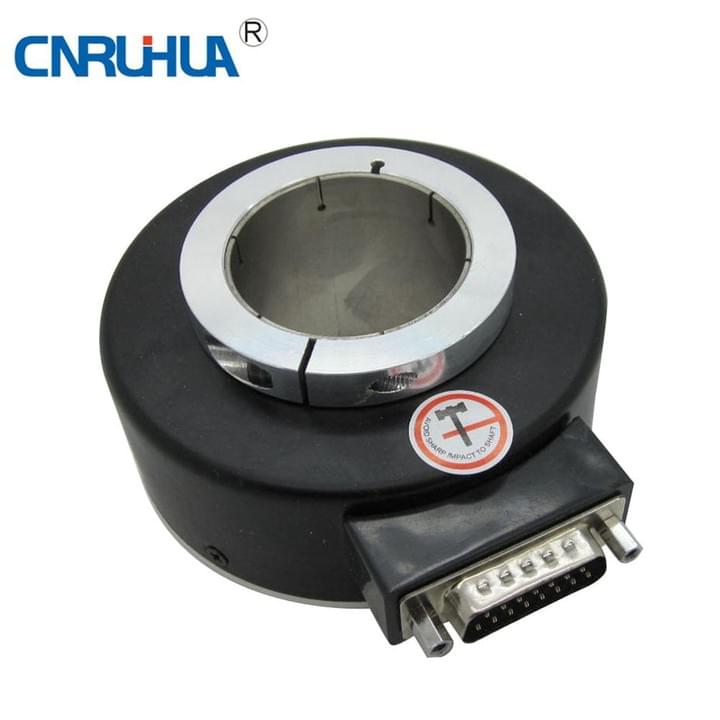

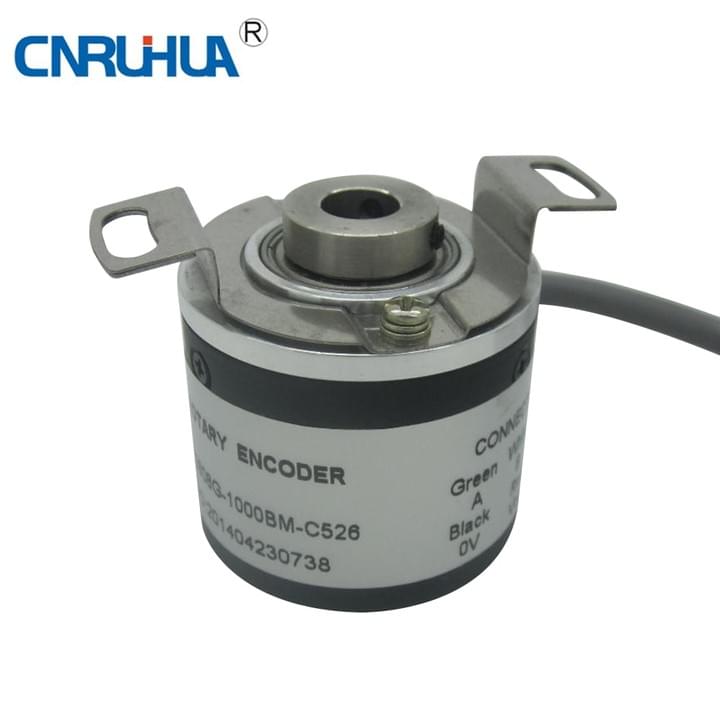

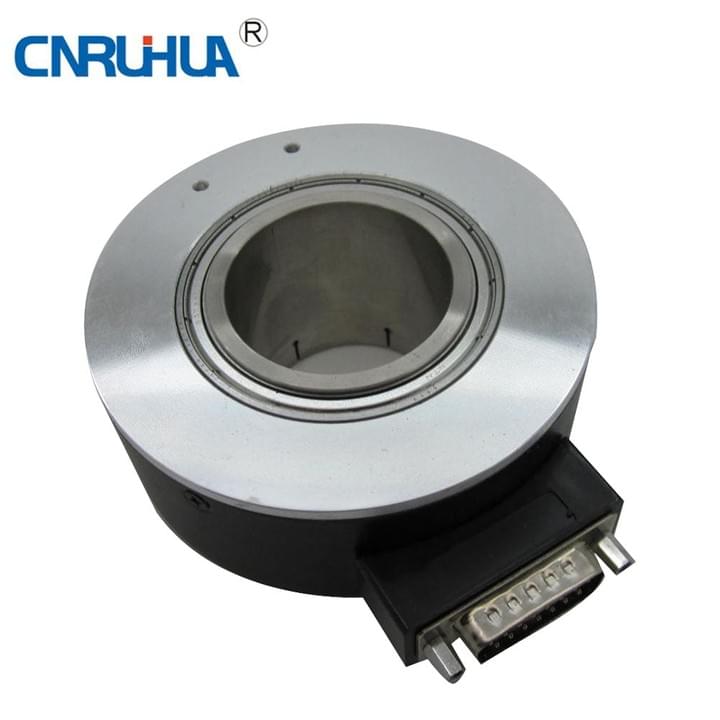

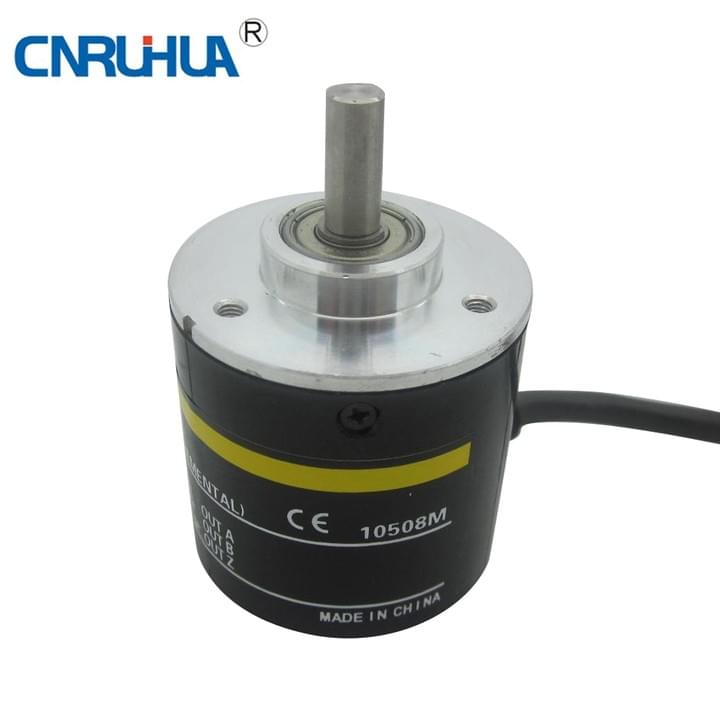

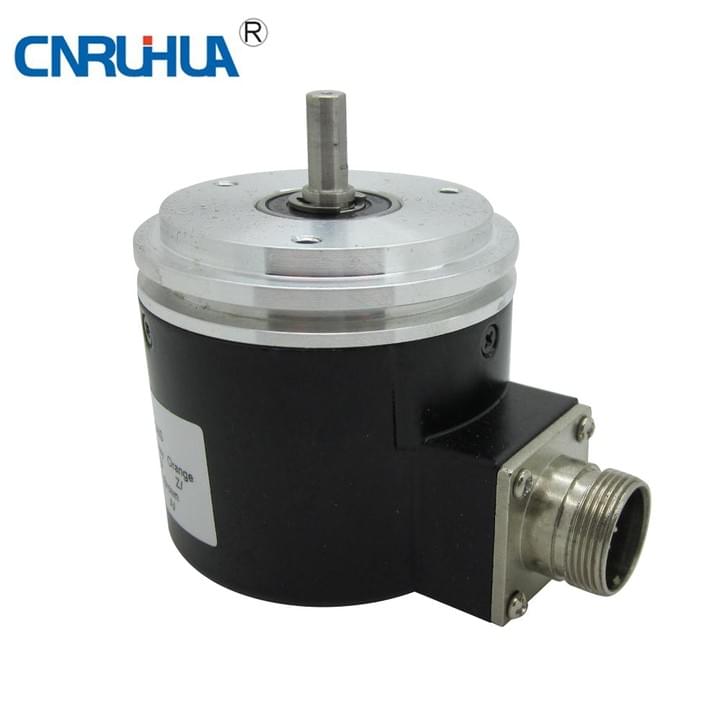

    Shaft Rotary Encoder and Hollow Rotary Encoder

    Rotary Encoder

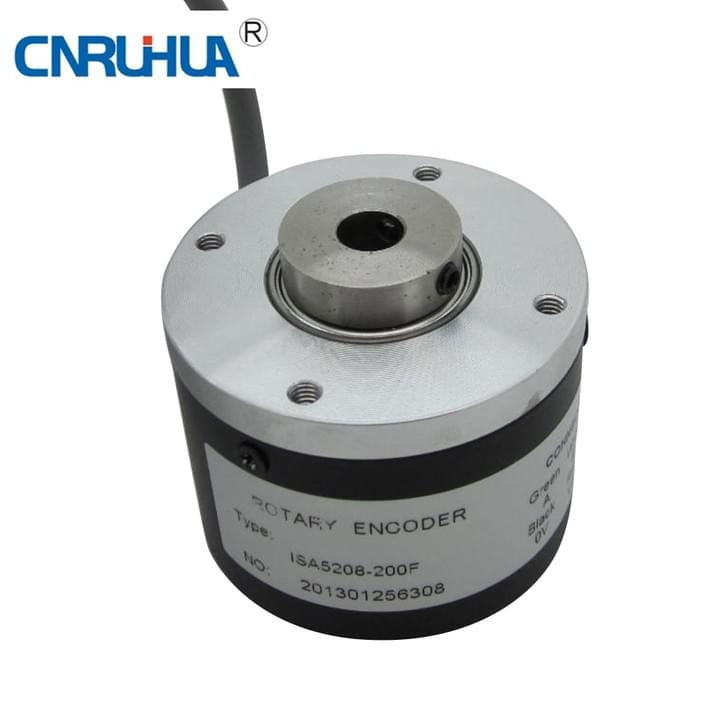

    5208

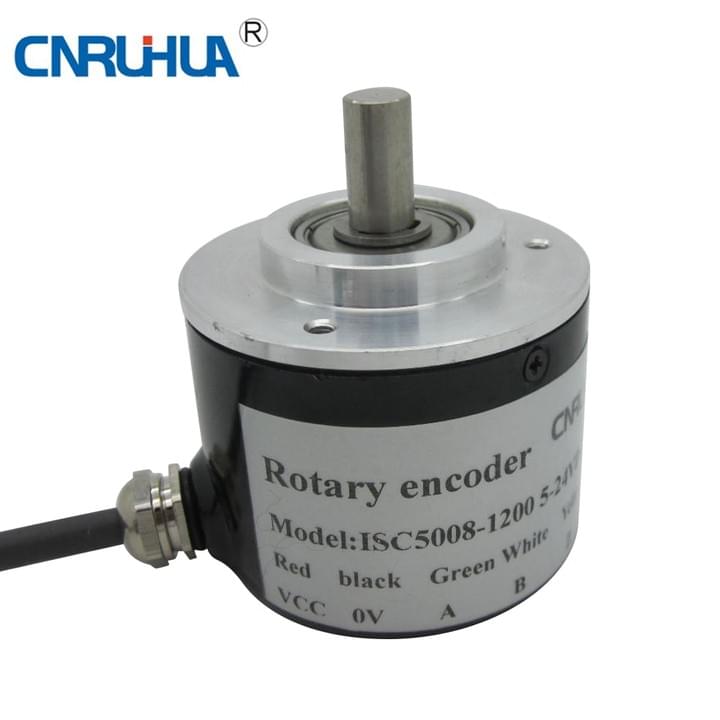

    5008

    3806

    9020

    K5208

    K3806

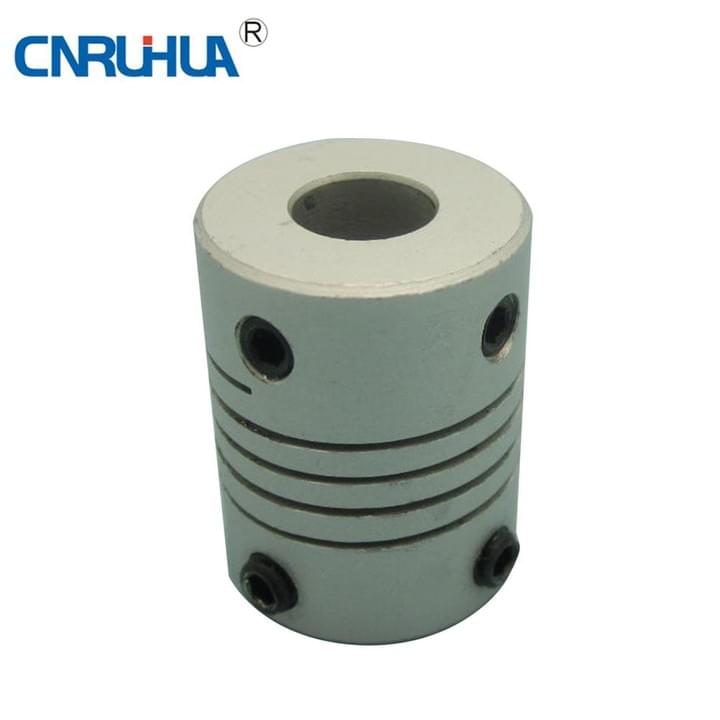

    coupling

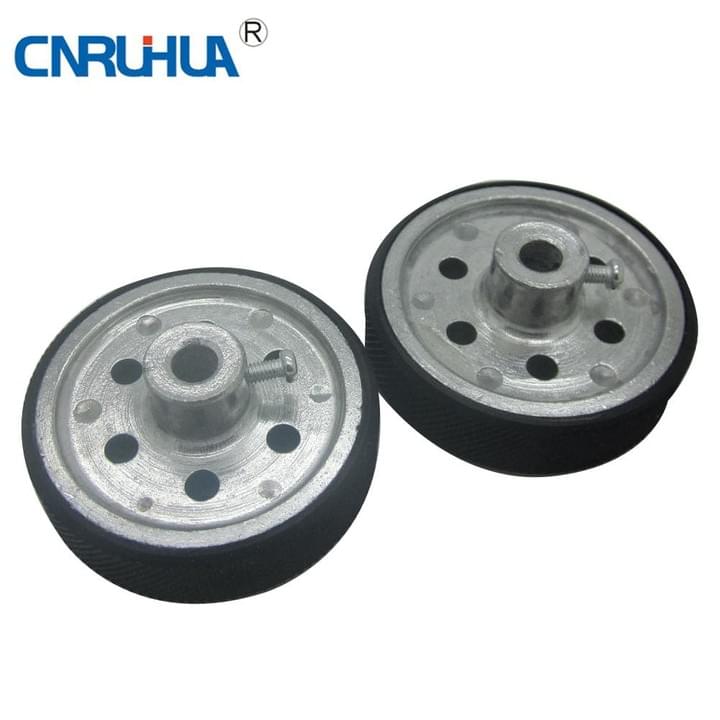

    wheels for rotary encoder

  • Sensor

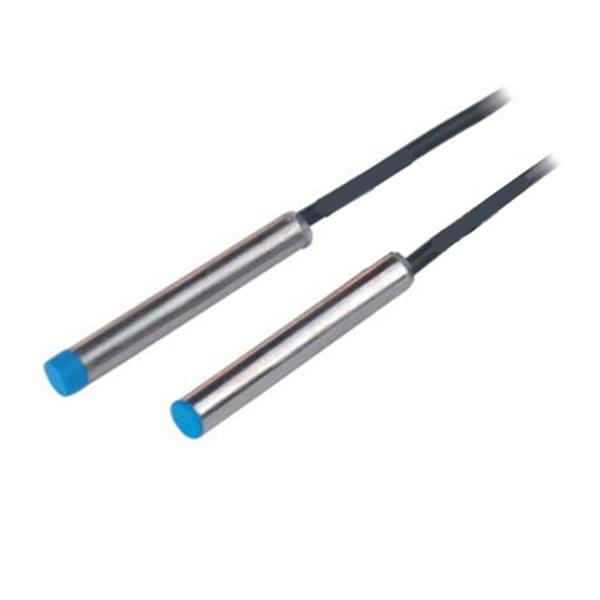

    LM6

    1.Diameter:6mm, 2.Detection Distance:1mm or 1.5mm, 3.voltage :6-36VDC



    LM8

    1.Diameter:8mm, 2.Detection Distance:1mm or 1.5mm, 3.voltage :6-36VDC

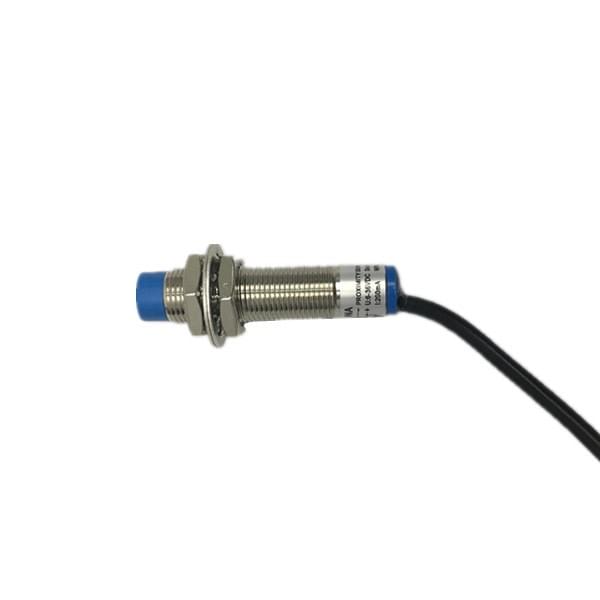

    LM12

    1.Diameter:12mm, 2.Detection Distance:2mm or 4mm, 3.voltage :6-36VDC

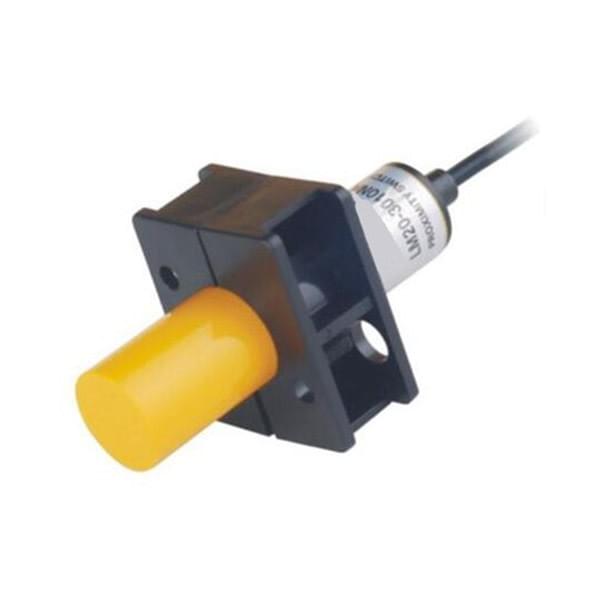

    LM20

    1.Diameter:20mm, 2.Detection Distance:10mm

    3.voltage :6-36VDC

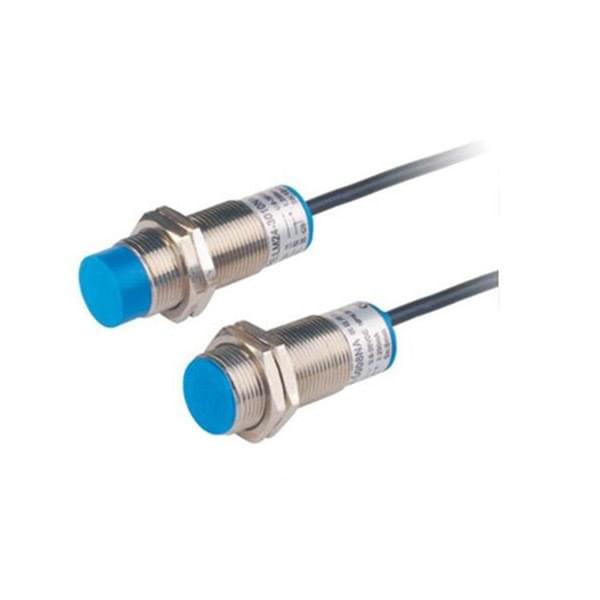

    LM24

    1.Diameter:24mm, 2.Detection Distance:8mm or 10mm, 3.voltage :6-36VDC

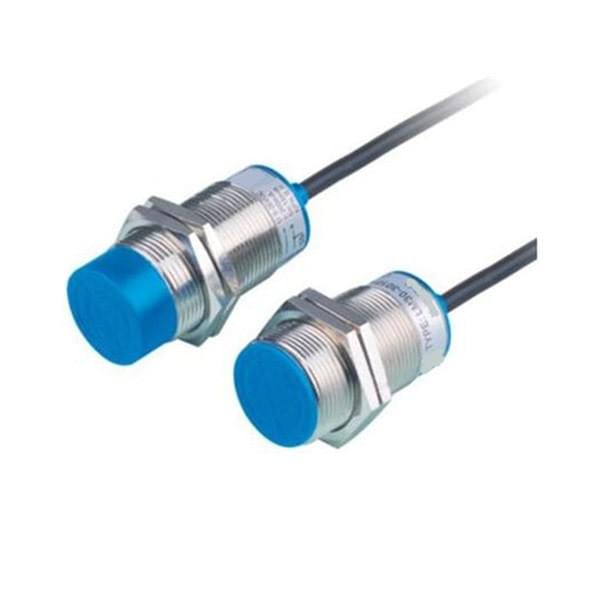

    LM30

    1.Diameter:30mm, 2.Detection Distance:10mm or 15mm, 3.voltage :6-36VDC

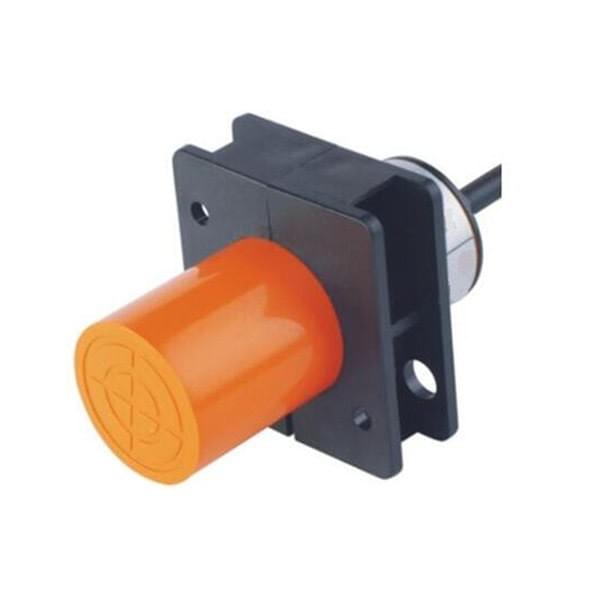

    LM34

    1.Diameter:34mm, 2.Detection Distance:17mm ,3.voltage :6-36VDC

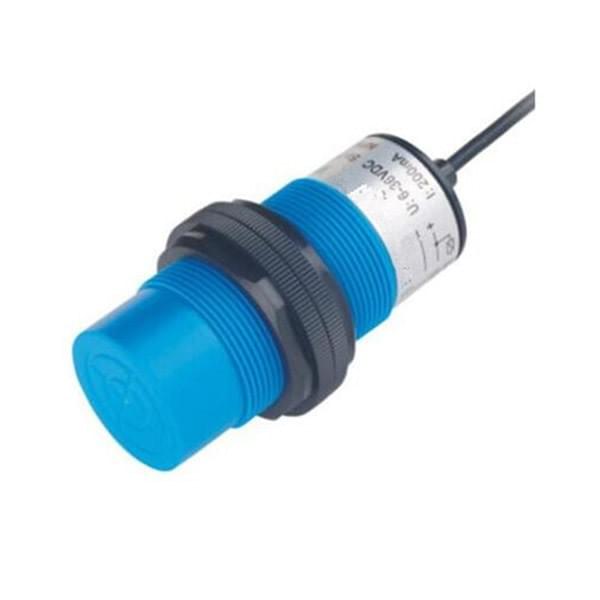

    LM35

    1.Diameter:35mm, 2.Detection Distance:17mm , 3.voltage :6-36VDC

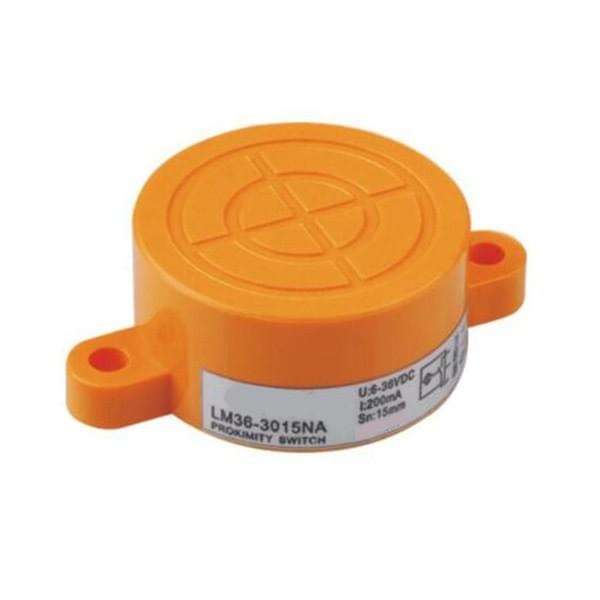

    LM36

    1.Diameter:36mm, 2.Detection Distance:17mm ,3.voltage :6-36VDC

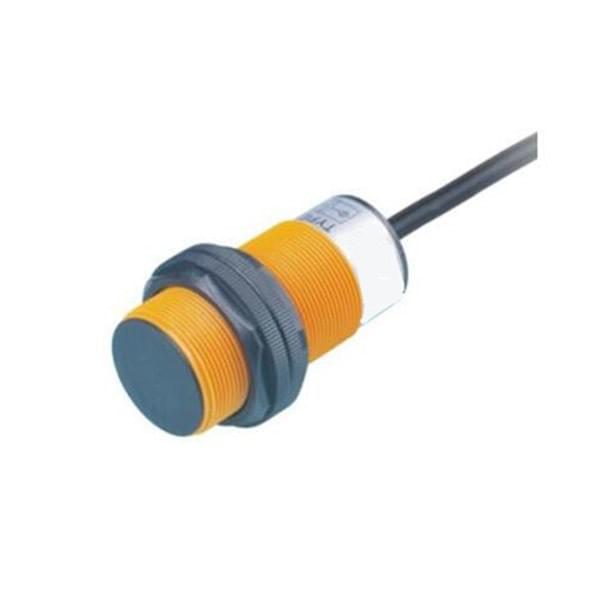

    LM38

    1.Diameter:38mm, 2.Detection Distance:12mm or 18mm ,3.voltage :6-36VDC

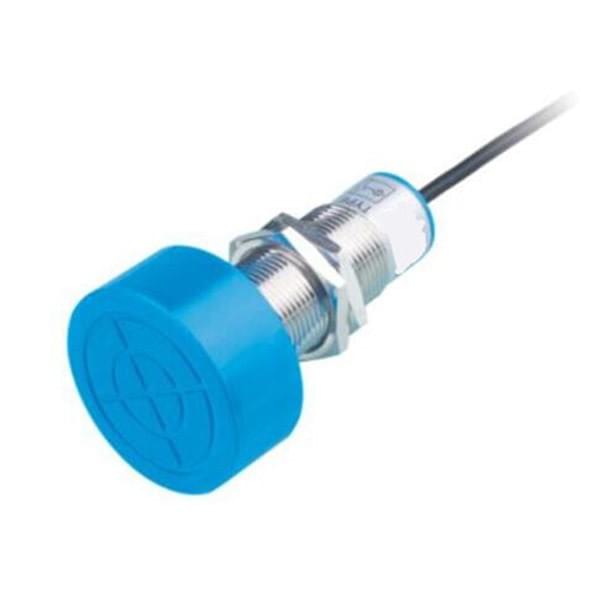

    LM39

    1.Diameter:39mm, 2.Detection Distance:19mm ,3.voltage :6-36VDC

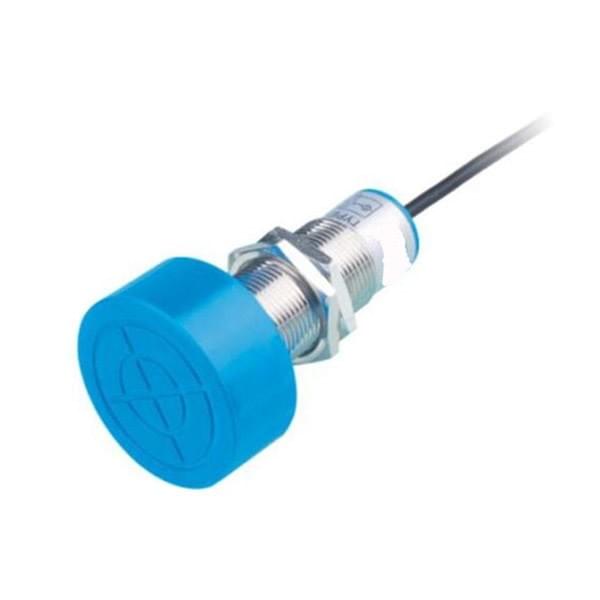

    LM40

    1.Diameter:40mm, 2.Detection Distance:20mm ,3.voltage :6-36VDC

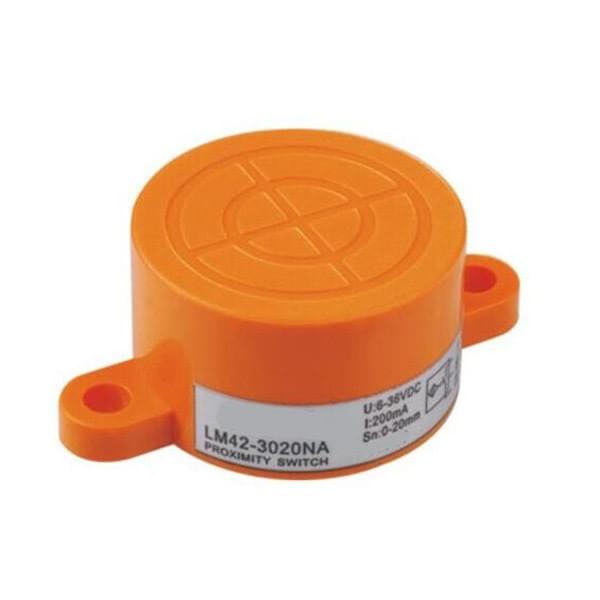

    LM42

    1.Diameter:42mm, 2.Detection Distance:20mm ,3.voltage :6-36VDC

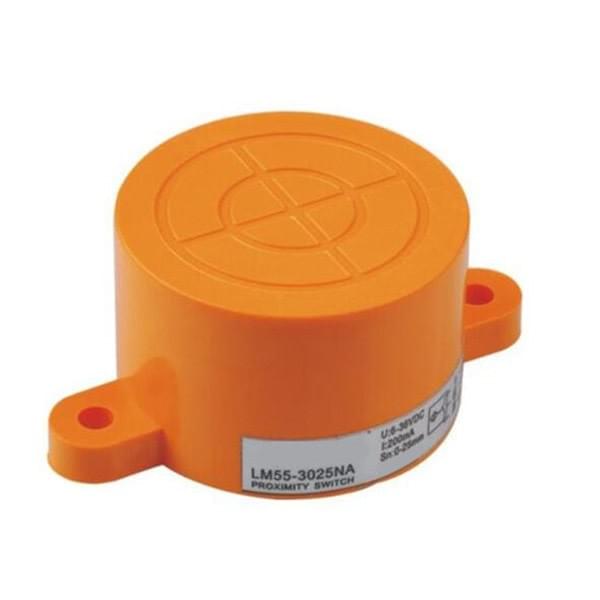

    LM55

    1.Diameter:55mm, 2.Detection Distance:20mm ,3.voltage :6-36VDC

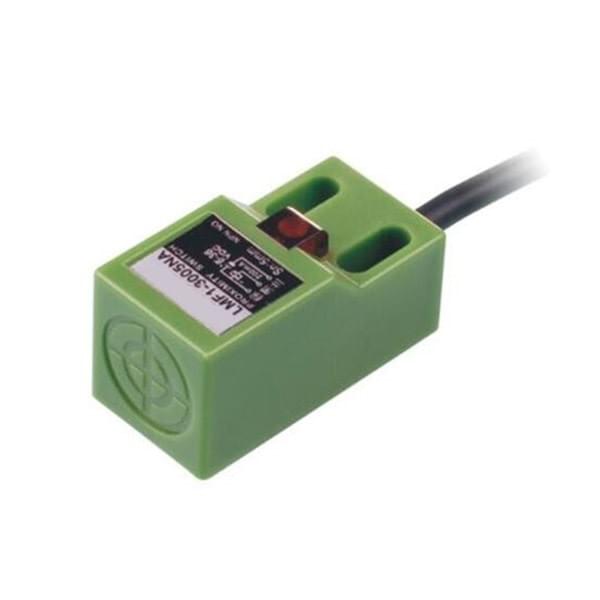

    LMF1

    1.Diameter:1mm, 2.Detection Distance:5mm ,

    3.voltage :6-36VDC

    LMF2

    1.Diameter:2mm, 2.Detection Distance:5mm ,

    3.voltage :6-36VDC

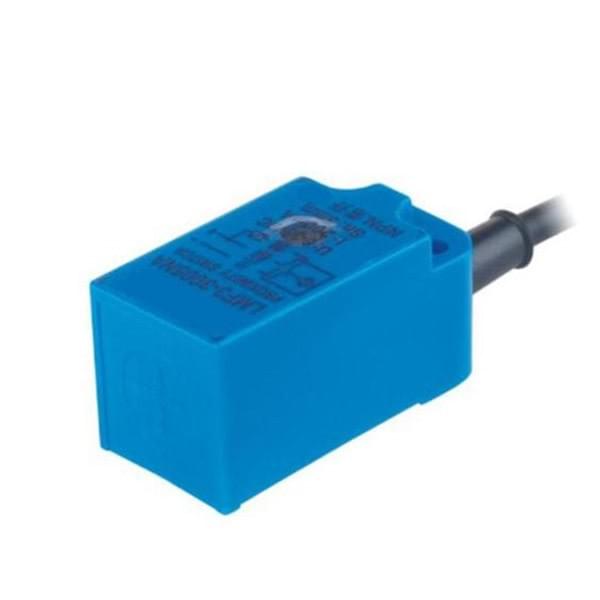

    LMF3

    1.Diameter:3mm, 2.Detection Distance:5mm ,

    3.voltage :6-36VDC

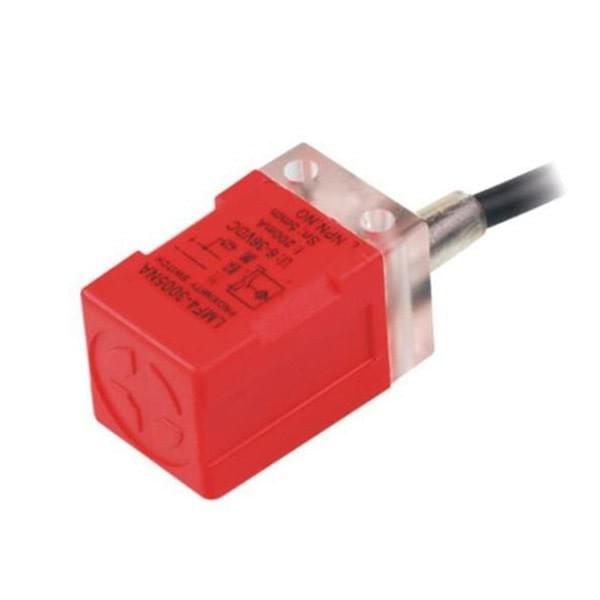

    LMF4

    1.Diameter:4mm, 2.Detection Distance:5mm ,

    3.voltage :6-36VDC

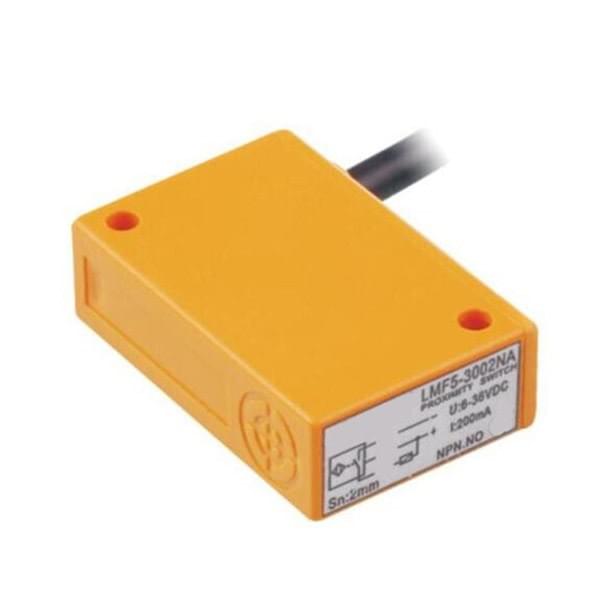

    LMF5

    1.Diameter:5mm, 2.Detection Distance:2mm or 4mm ,3.voltage :6-36VDC

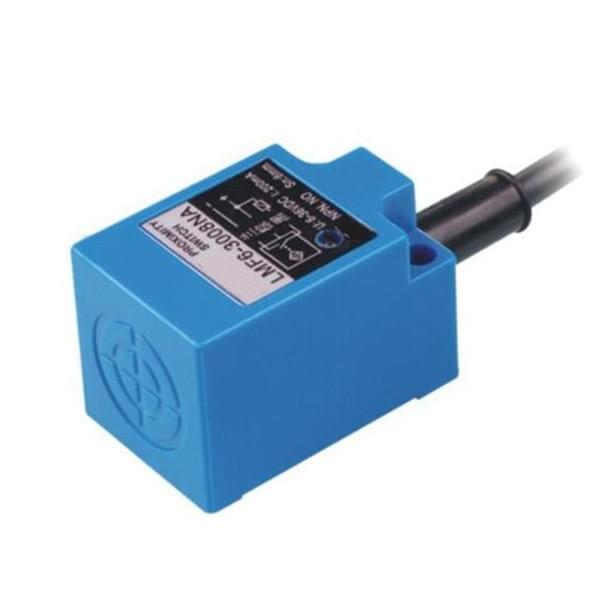

    LMF6

    1.Diameter:6mm, 2.Detection Distance:8mm or 10mm ,3.voltage :6-36VDC

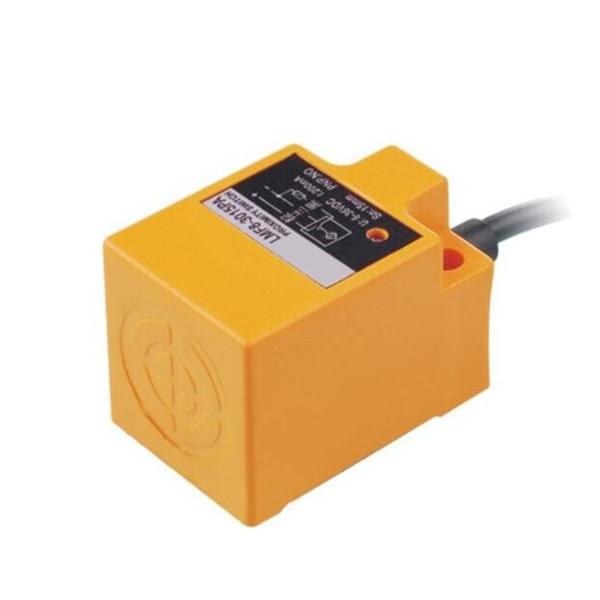

    LMF8

    1.Diameter:8mm, 2.Detection Distance:10mm or 15mm,3.voltage :6-36VDC

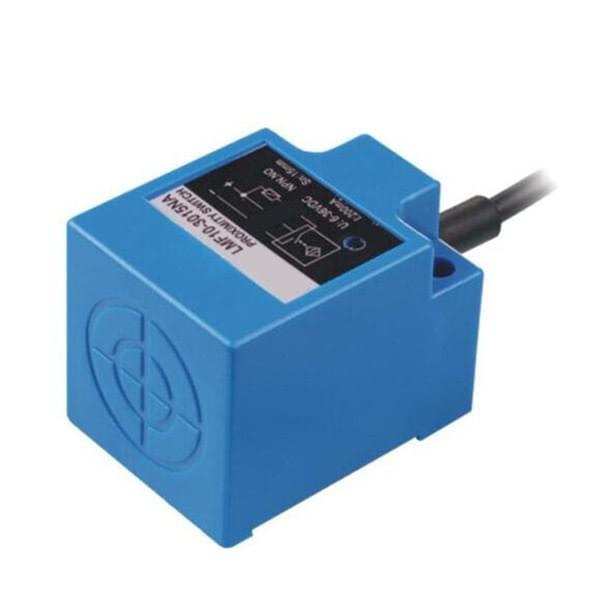

    LMF10

    1.Diameter:10mm, 2.Detection Distance:15mm or 20mm,3.voltage :6-36VDC

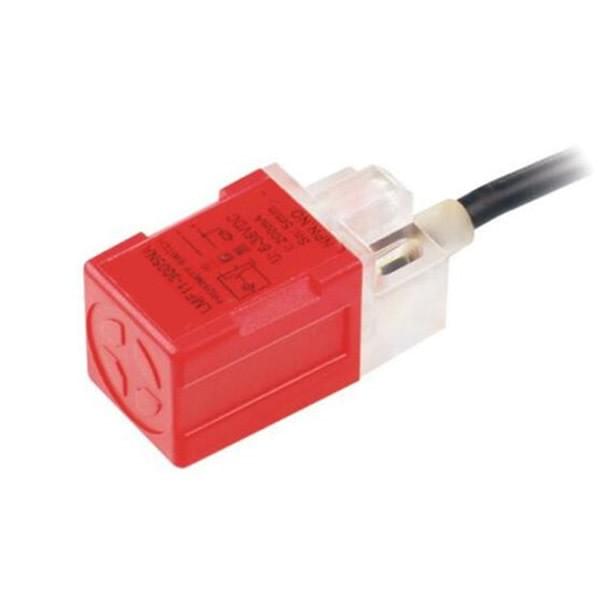

    LMF11

    1.Diameter:11mm, 2.voltage :6-36VDC

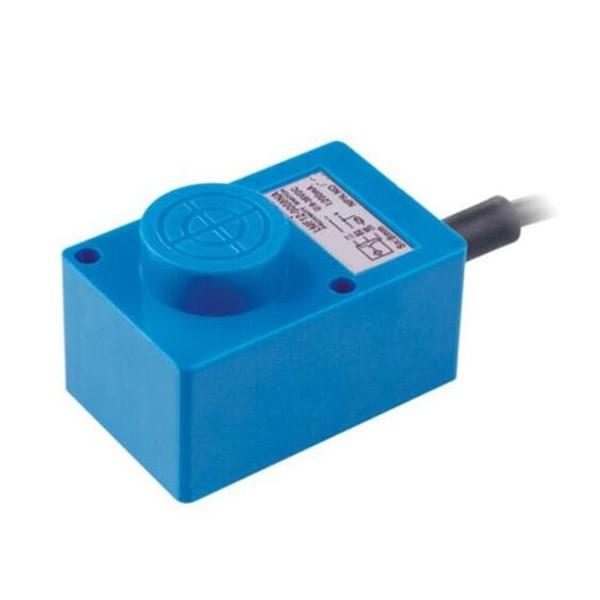

    LMF12

    1.Diameter:12mm, 2.Detection Distance:8mm ,

    3.voltage :6-36VDC

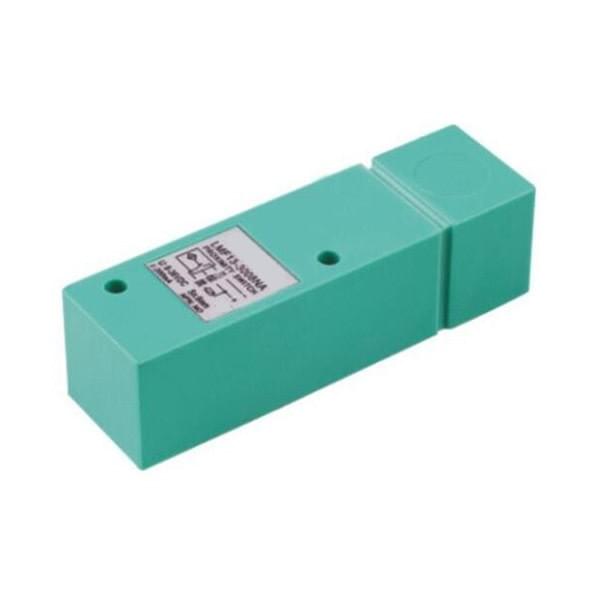

    LMF13

    1.Diameter:13mm, 2.Detection Distance:8mm ,

    3.voltage :6-36VDC

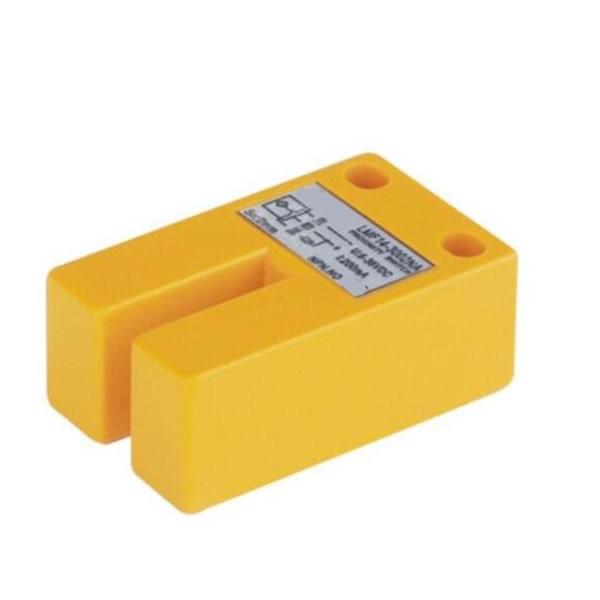

    LMF14

    1.Diameter:14mm, 2.voltage :6-36VDC

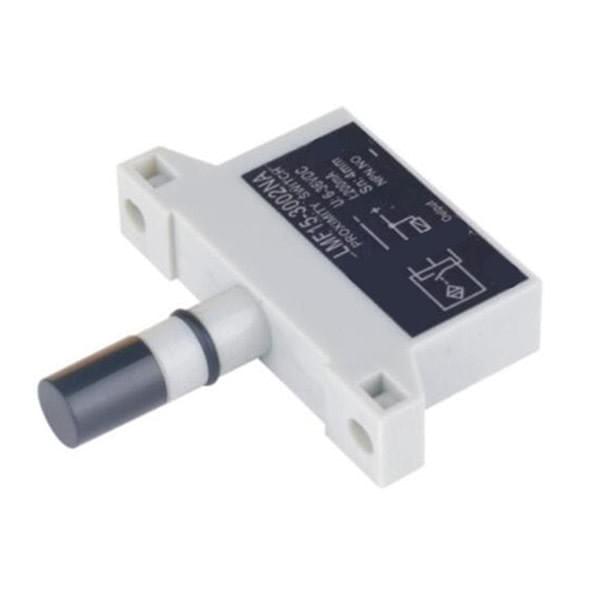

    LMF15

    1.Diameter:15mm, 2.Detection Distance:2mm or 4mm ,3.voltage :6-36VDC

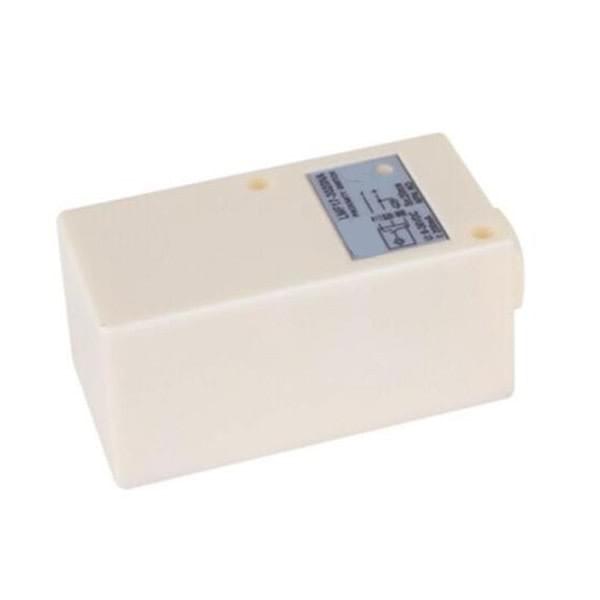

    LMF16

    1.Diameter:16mm, 2.Detection Distance:15mm ,3.voltage :6-36VDC

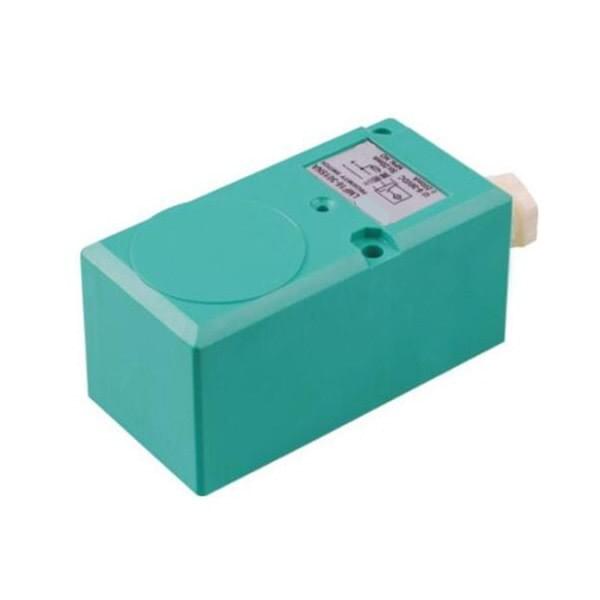

    LMF17

    1.Diameter:17mm, 2.Detection Distance:20mm ,3.voltage :6-36VDC

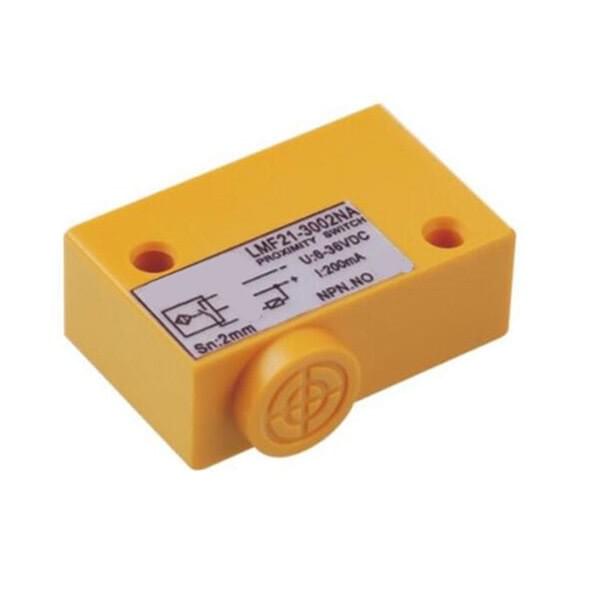

    LMF21

    1.Diameter:21mm, 2.Detection Distance:2mm or 4mm 3.voltage :6-36VDC

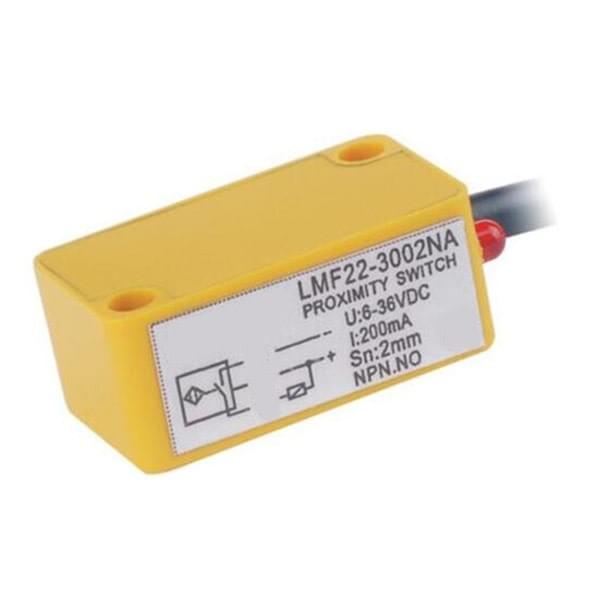

    LMF22

    1.Diameter:22mm, 2.Detection Distance:2mm or 4mm,3.voltage :6-36VDC

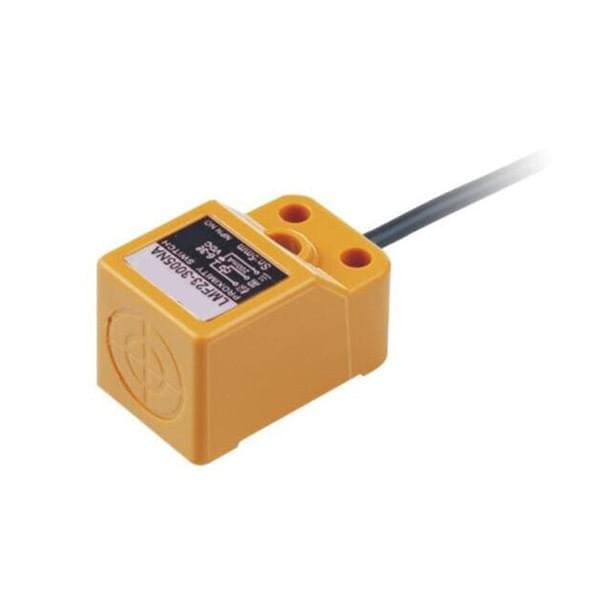

    LMF23

    1.Diameter:23mm, 2.Detection Distance:2mm ,3.voltage :6-36VDC

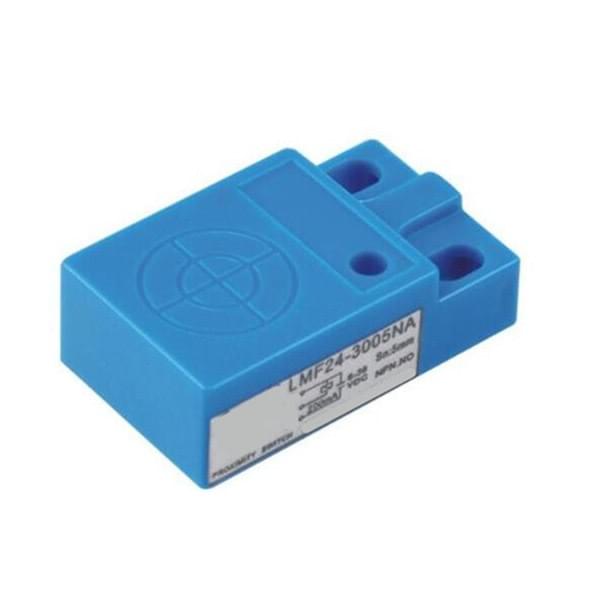

    LMF24

    1.Diameter:24mm, 2.voltage :6-36VDC

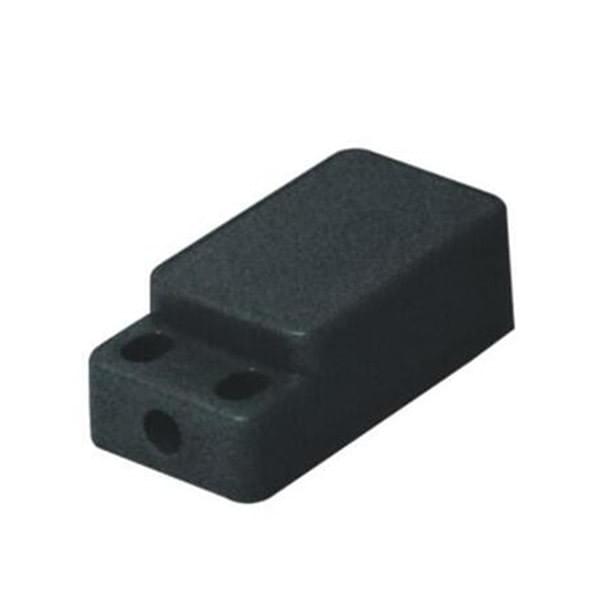

    LMF25

    1.Diameter:25mm , 2.voltage :6-36VDC

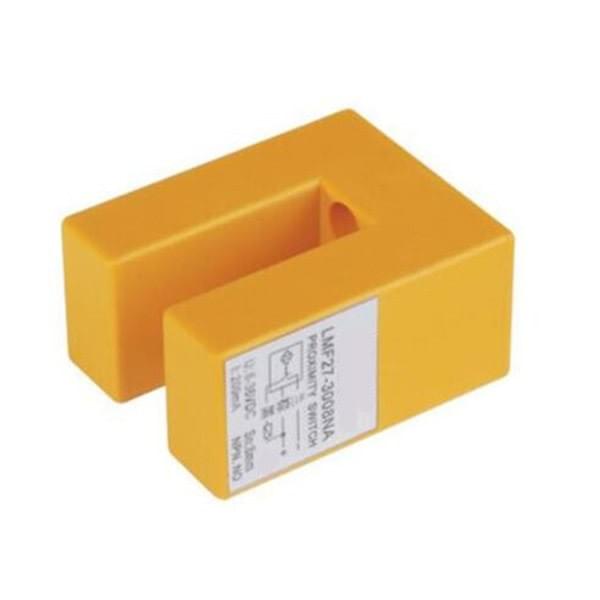

    LMF27

    1.Diameter:27mm, 2.voltage :6-36VDC

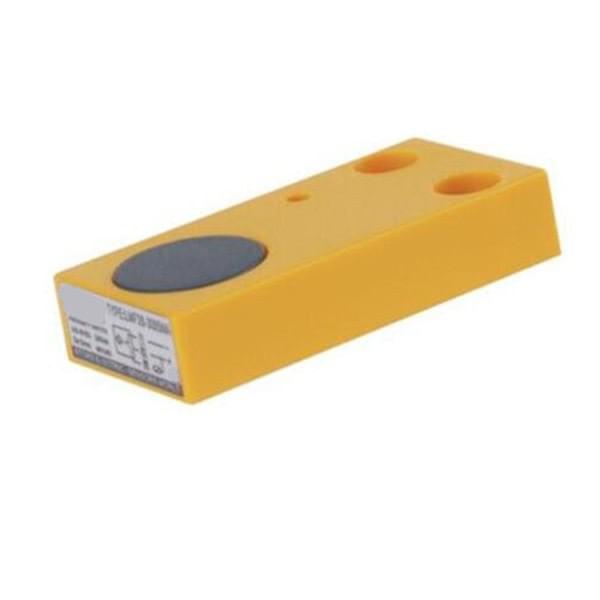

    LMF29

    1.Diameter:29mm, 2.Detection Distance:5mm or 8mm ,3.voltage :6-36VDC

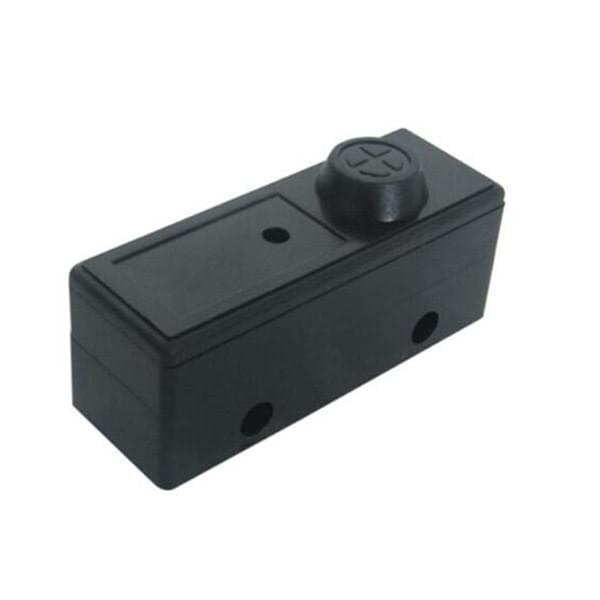

    LMF30

    1.Diameter:30mm, 2.voltage :6-36VDC

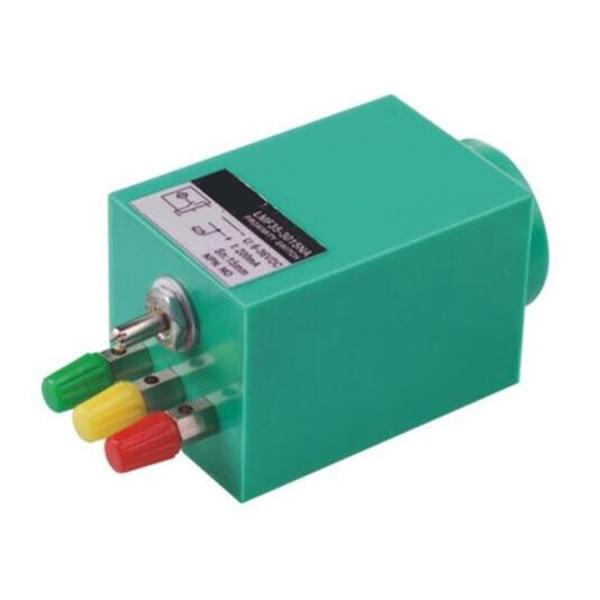

    LMF35

    1.Diameter:35mm, 2.Detection Distance:15mm ,3.voltage :6-36VDC

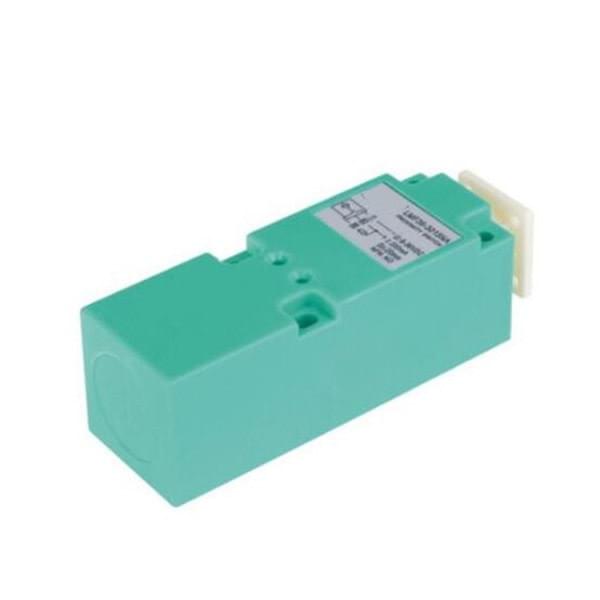

    LMF36

    1.Diameter:36mm, 2.Detection Distance:1-20mm ,3.voltage :6-36VDC

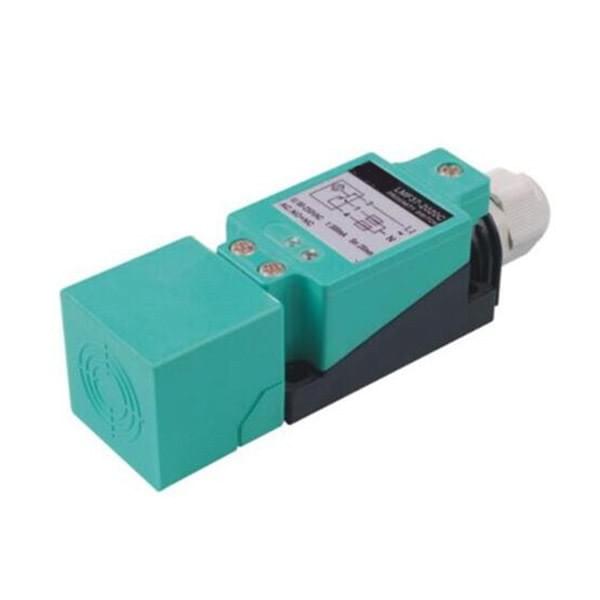

    LMF37

    1.Diameter:37mm, 2.Detection Distance:15mm or 20mm 3.voltage :6-36VDC

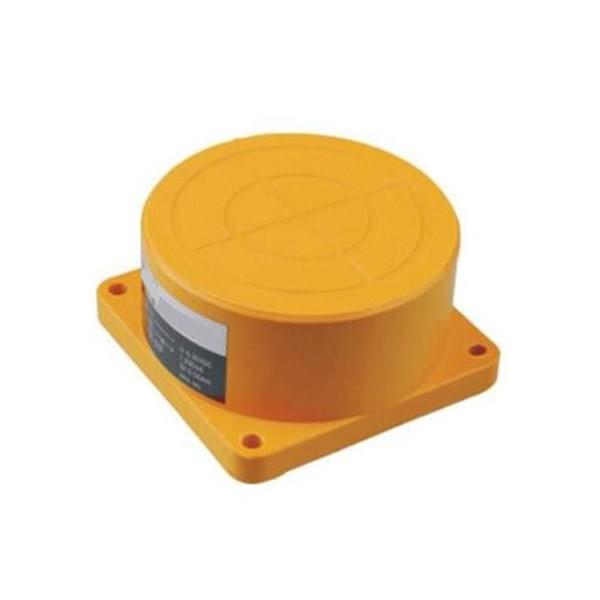

    LMF38

    1.Diameter:38mm, 2.Detection Distance:1-40mm ,3.voltage :6-36VDC

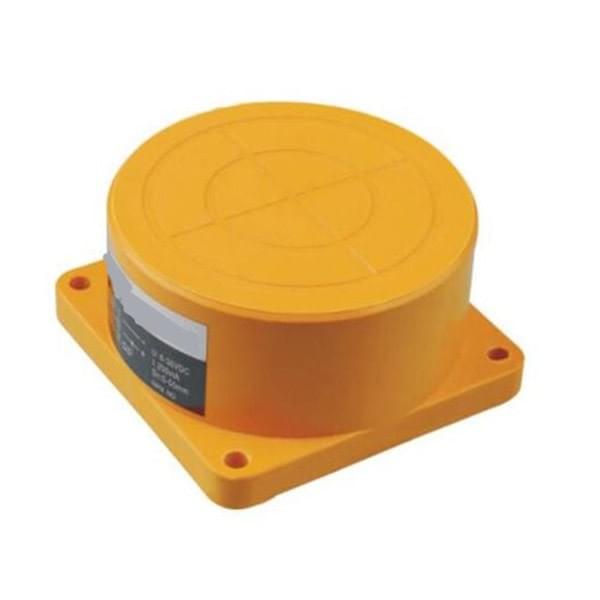

    LMF39

    1.Diameter:39mm, 2.Detection Distance:1-50mm ,3.voltage :6-36VDC

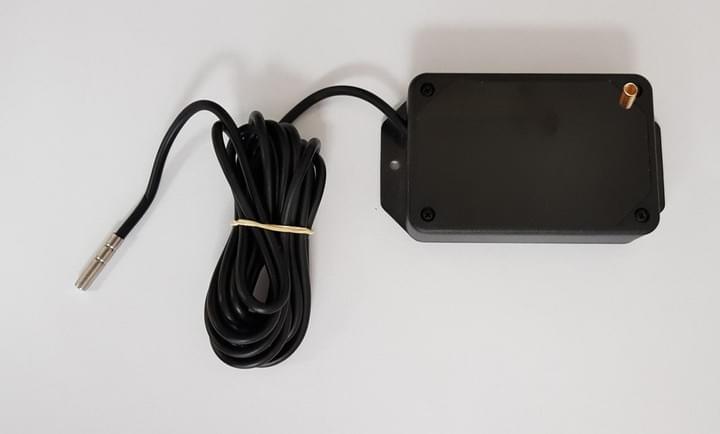

    90RS Intelligence wireless sensor

    90RS

    90RS Intelligence wireless sensor





    Wireless battery operated temperature and humidity sensor with internal data logging. Data is transmitted to central base station with GPRS/LAN/WiFi interface to remote SCADA server.



    Applications:

    • Industrial & Manufacturing
    • Data Centre & Cold Storage
    • Medical or Environmental

    Platform:90RS

    Power output:P<10 mW (P<10 dBm)

    Indoor/Urban range:Up to 300 ft (90 m)

    Outdoor/RF line-of-sight range:Up to 0.25 mile (400m) RF LOS

    Operating frequency:433 MHz

    Interface data rate:1.2 Kbps. optional Up to 56 Kbps

    Max transmit time:300msec

    Power

    Supply voltage:Lithium battery 3.6 V

    Transmit current:85 mA

    Receive current:18.5 mA

    Power-down sleep current:<10 µA at 25° C

    General

    Frequency band:433.05 – 434.70MHz

    Band width:12.5KHz

    RF Module:RF4432PRO-433 by G-NiceRF

    RF Module certifications:RED 2014/53/EU (CE) CTL1705094052-W



    Physical Properties

    Size:105 mm X 75 mm X 28 mm

    Weight:141 g (Include battery)

    Operating temperature:-40° C to 85° C (industrial)

    Mid Temperature Model

    Precision Relative Humidity Sensor:

    ±3% (0-80%)±5%(80-100%)

    High Accurancy Temperature Sensor:± 0.4° C (max), -10° C to 85° C



    Operation range - temperature:-40° C to 125° C

    Operation range - humidity:0-100% RH

    Low Temperature Model

    High Accurancy Temperature Sensor:± 0.4° C (max), -10° C to 85° C

    Operation range:-90° C to 20° C

    Configuration

    Local push button

    Memory

    2000 temperature records:  Optional 8000
