ozone generator and Mini pump
Ozone Generator Cell
Tube & Plate type

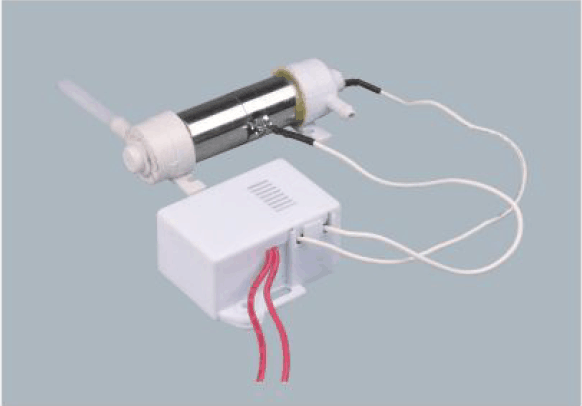

500mg tube type
power supply size: 60*42*30mm
Tube: 14*27mm
Input Voltage: 220VAC/110V
Ozone output: 500mg/hr

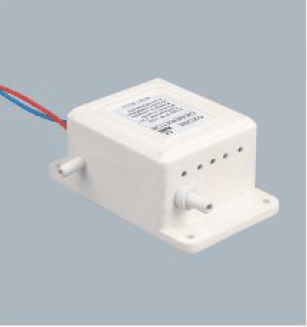

mini ozone generator FW-120
Ozone output: 200-400mg/hr
Voltage: 12VDC
Power: 2.16w
weight: 0.06kg
Dimension: 3.45x8.5x5cm
Application: Air purifier,water purifier

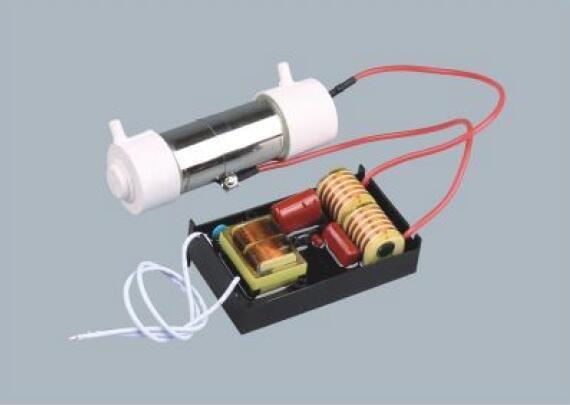

2G tube type
power supply size: 152*47*44mm
Ceramic chip size: 160*51*55mm
Input Voltage: 220V/110V
output Voltage: 3.1kv
power: 30w
Frequency: 3khz

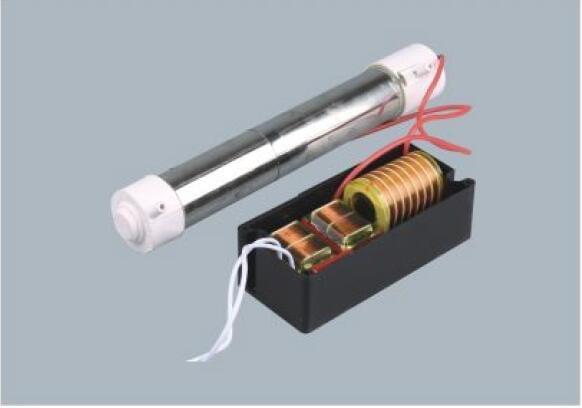

3G tube type
power supply size: 152*47*44mm
Ceramic Chip size: 200*51*55mm
Input voltage: 220V/110V
Output Voltage: 3.1kv
power： 30w
Frequency: 3khz

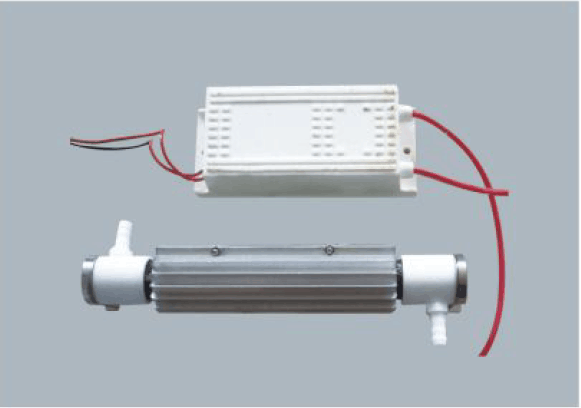

5G tube type
power supply size: 160*65*45mm
Ceramic Chip size: 243*30mm
Input Voltage: 220V/110V
Output Voltage: 3.1kv
power: 80w
Frequency: 18khz

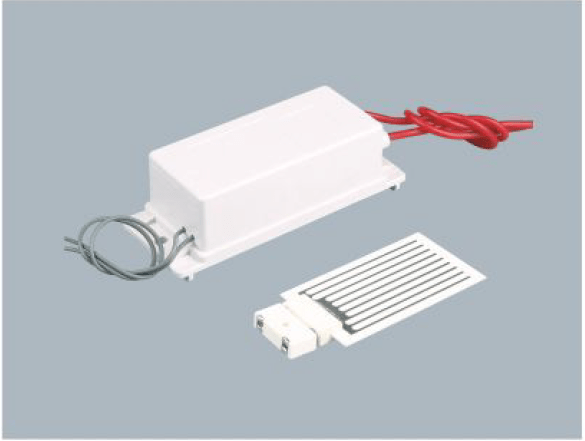

3.5g plate type ozone generator
power supply size: 145*58*43mm
Ceramic Chip size: 112*50mm
Input Voltage: 220V/110/12V
Output Voltage: 3.1-3.5kv
power: 40-50w
Frequency: 18-20khz

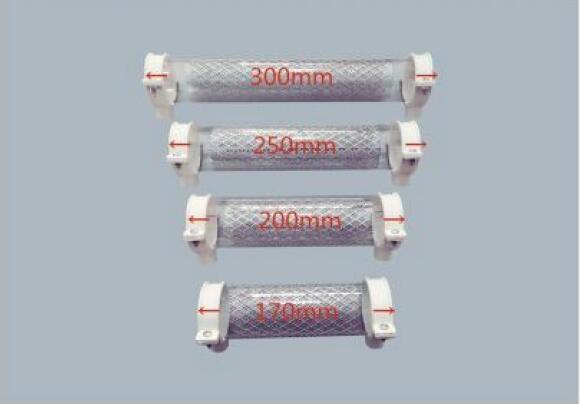

2g 3g 5g 7g ozone tube
2g ozone tube size: 170*outside diameter 45mm
2g power supply size: 50mm*55mm*140mm
power: 35w 22VAC
3g ozone tube size: 200*outside diameter 45mm
5g ozone tube size: 250*outside diameter: 45mm
7g ozone tube size: 300*outside diameter:45mm
7g power supply size: 50mm*55mm*140mm
7g plate type ozone generator
power supply size: 145*58*43mm
Ceramic Chip size: (112*50mm)*2
Input Voltage: 220V/110V/12V
Output Voltage: 5kv
power: 95w
Frequency: 16khz

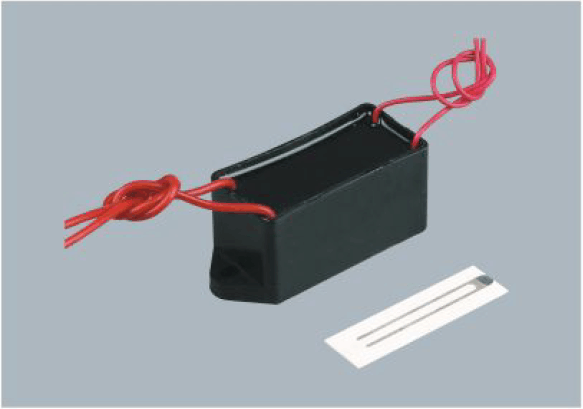

50mg plate type ozone generator
powre supply size: 60*30*30mm
Ceramic Chip size: 22*15mm/15*15mm
Input voltage: 220V/110V12V
Output Voltage: 2.8-3.2kv
power: 10w
Frequency: 20khz
200mg plate type ozone generator
power supply size: 60*30*30mm
Ceramic Chip size: 36*15mm
Input voltage: 220V/110/12V
Output Voltage: 2.8-3.2kv
power: 10w
Frequency:20khz

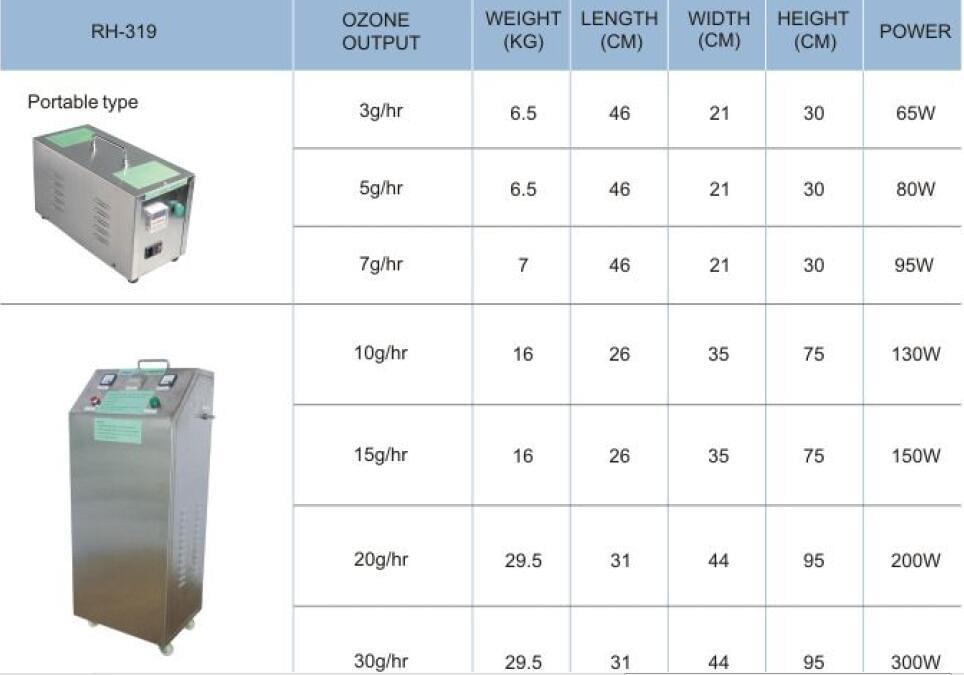

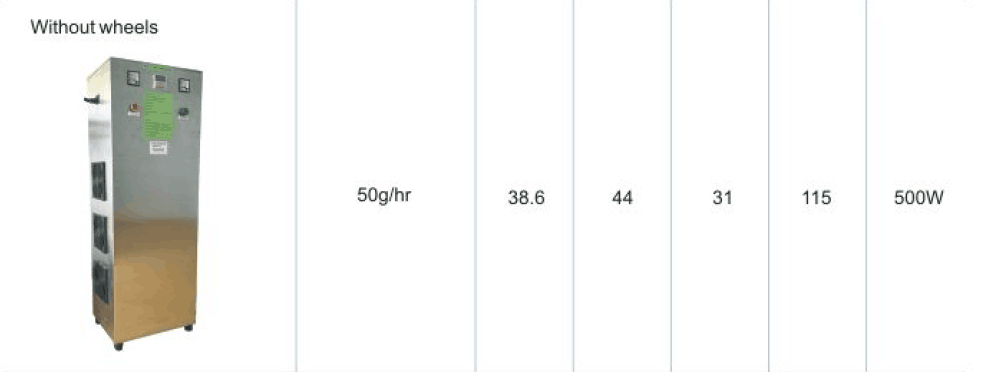

RH-319 ozone generator
Household ozone genertor

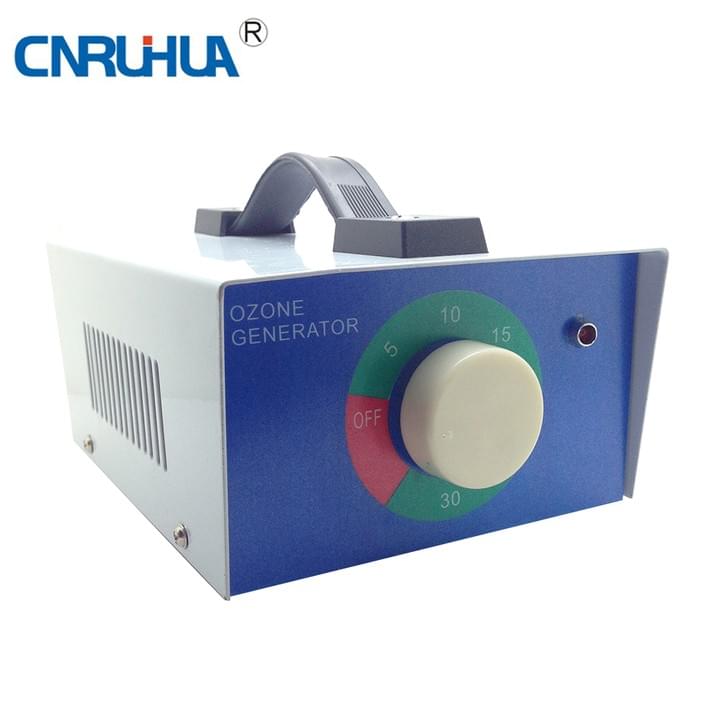

OZONE GENERATOR KW-300
ozone output: 200-400mg/hr voltage:12VDC/110-220VACall available
time set: 0-15mins
power:2.16w
weight: 1.18kg Dimension: 17.5x12.5x8.5cm
Application: Air purifier,water purifier

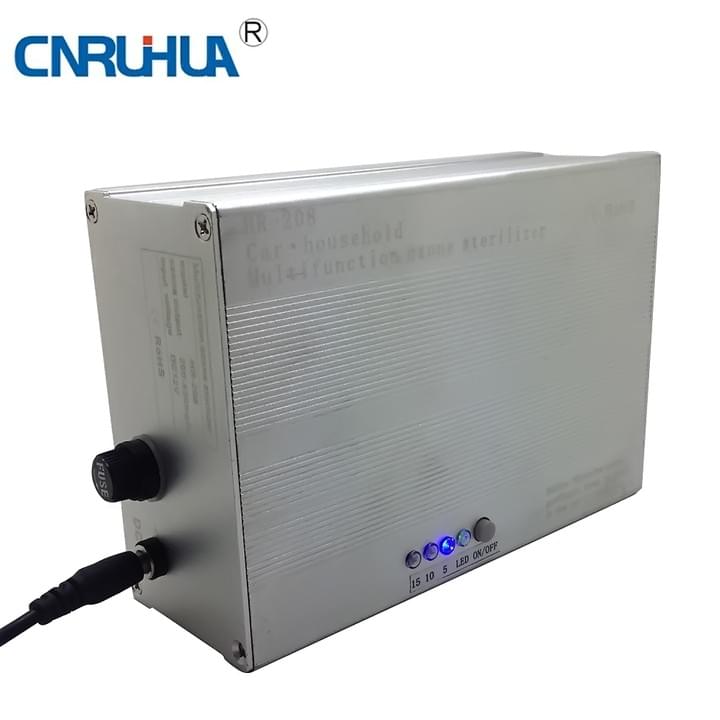

OZONE GENERATOR RH-208
ozone output: 200-400mg/hr
voltage: 12VDC/110-220VAC all available
time set: 5mins,10mins,15mins
power: 2.16w
pump flow: 2.15L/min
weight: 0.86kg
Dimension: 11x15.5x5.6cm
application:Air purifier,water purifier
PURLFLER MACHLNE RH-388
power generator: water power three-phase alternator
output power: 3~4.5w
working Humidity/Temperature: 25%RH-90%RH/0℃-50℃
03 water consistency: 0.3~0.5ppm
pipe water pressure: 0.12~0.45MPa
main material: ABS resin casing
weight: 250g
Dimensions: 164x148x86mm
KW-600
Rated voltage: 220VAC
Rated frequency: 50HZ
Power: 15w
Capacity: 4L
product weight: 3.625kg
package size 37.5*32.5*28.5cm
Your Ozone Generator Manufacture in China
15+ year’s ozone generator manufacture experience, we have 10000+ customers in
the world. We have exports the products to more than 80 countries. Such as to
Europe, North and South America, Southeast Asia, Middle East, Africa.You can get the helpful and technical support from our team. And you also can get OEM, ODM service. For instance, you can tell us your requirements; we will accord your requirements to design.
Our sales team is Friendly, supportive, and responsive, they are professional in problem-solving and 7/24 online service.
You can get the ozone generator samples service
We can provide the ozone generator samples to you for testing in the first time. The most products samples delivery time is in 3-5 days and delivery to your hand is in 5-8days by FedEx or DHL or UPS.
You can order Low quantity, mini order just 10pcs.
Ozone Generator------- Application
The ozone generator can be used in large range, such as: Air Treatment, water treatment,Farms,Laundry,Pool and Spa,Aquaculture,food storage,odor removal, seafood progress, room air purifier
What is ozone?
Ozone is one of the most powerful oxidants available, destroying bacteria, viruses, mold and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology.
Ozone’s molecular structure is three oxygen atoms (O3).
How is the ozone product?
Ozone can be produced artificially by an ozone generator according to the same principles that occur in nature; by UV light (ozone layer) or by corona discharge (lightning).
In both methods the bonds between oxygen molecules are broken forming oxygen radicals (O), which connect with other oxygen molecules (O2) to create ozone (O3).
The corona discharge method is preferred for ozone production due to its prolonged efficiency and lower production costs.
An ozone generator uses either ambient air or pure oxygen to create ozone.
The benefit of using pure oxygen is that higher concentrations of ozone can be achieved more quickly.
Applications requiring high ozone concentrations will therefore favour the use of an oxygen concentrator, which separates pure oxygen from the air.
How does ozone work?
Ozone destroys pathogens and odours by an oxidation process: one of the three oxygen atoms reacts and splits from the ozone molecule to oxidize matter with inherent oxidation demand.
In so doing, the ozone molecule is transformed into oxygen. Any excess ozone is stable for a short time before decomposing back into oxygen.
The most common ozone applications include air and water purification as well as applications where ozone can fully or partially replace disinfectants.As opposed to most chemicals, ozone is safe to use.
Why is ozone a green technology?
Ozone is a green technology with many environmental benefits.
It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs).
The only by-product created by ozone applications is oxygen which is reabsorbed into the atmosphere.
Ozone’s ability to disinfect in cold water also saves energy.

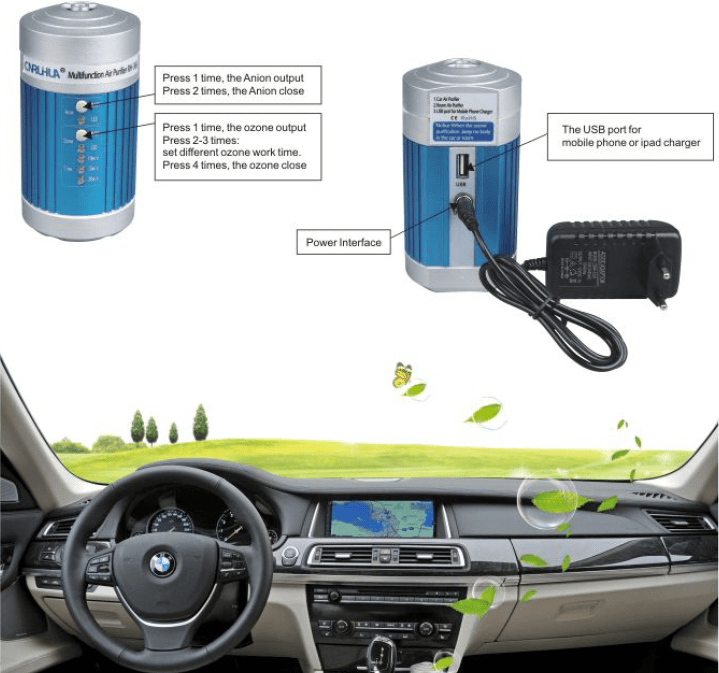

RH-366 Car Air Purifier
mobile phone charger
Anion and ozone output
How to use it ?

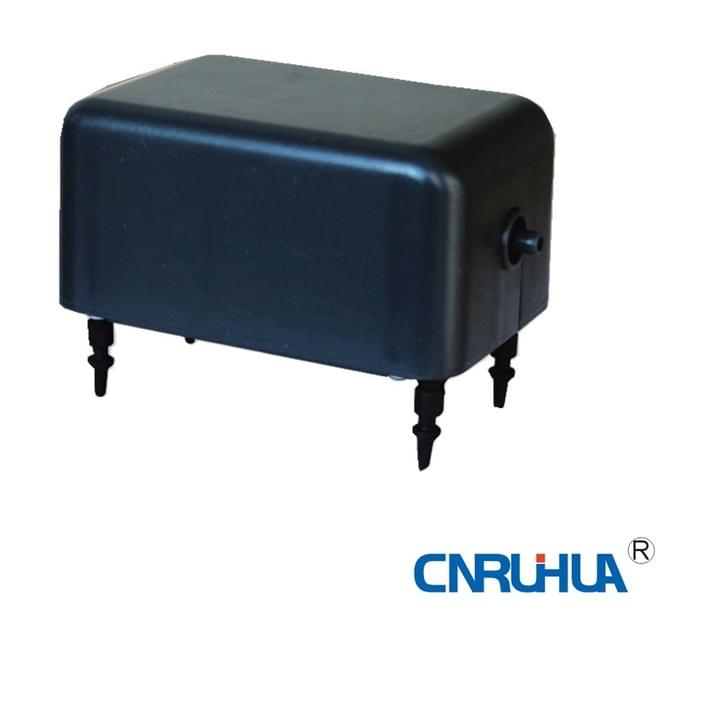

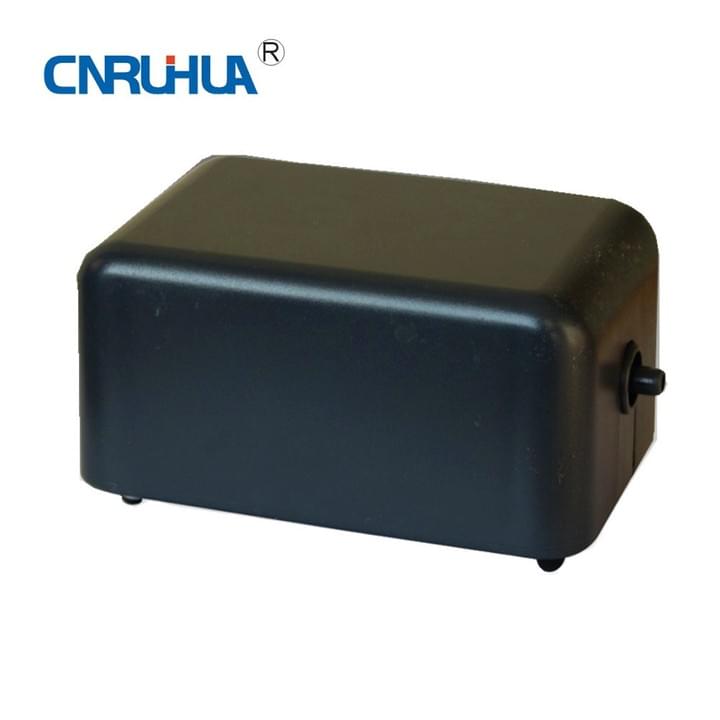

MINI PUMP
air pump and water pump

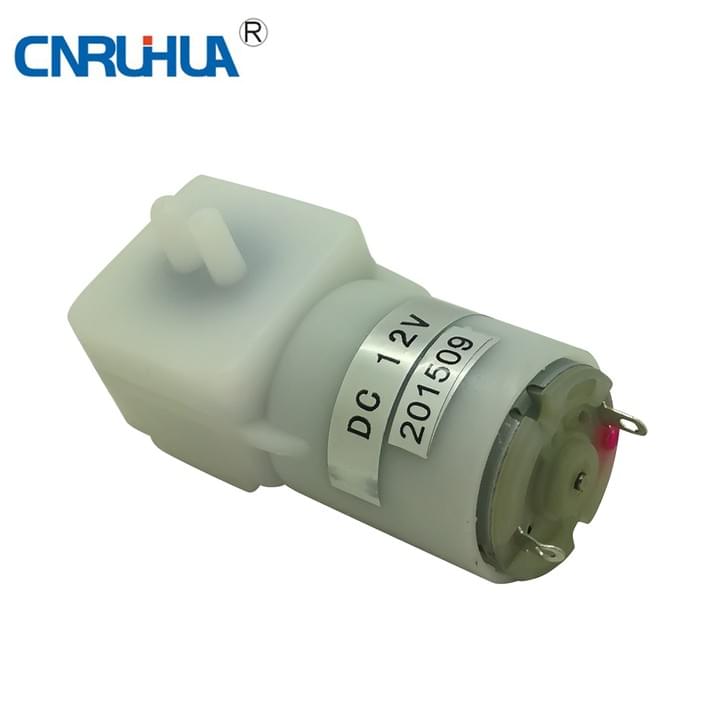

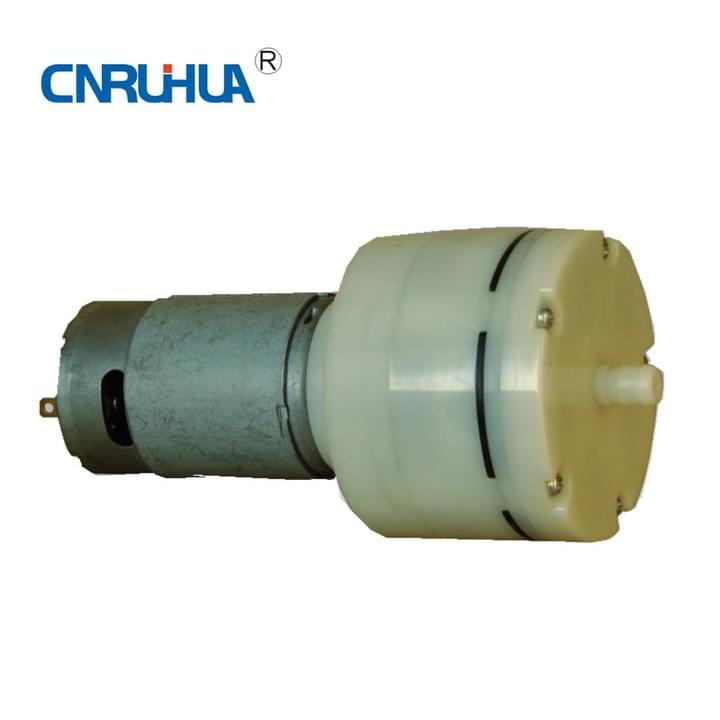

FW-180 mini pump
Air output: 2.0L/min
pump pressure: 20kpa
power Requirement: DC12V,0.17A
power Consumption: 2w
pump Design: Double diaphragm,duckbil valves
pump Body: PLASTLC
Outlet & Inlet Dia: 0.3mm
Electrical Connections: 1-ft(300mm) Insulated wire pair
Noise Level: 30dB
RH-77 mini pump
Size(mm): 88x53x35.7
Voltage(V): 12/24 100~240
Frequency(HZ): AC DC 50/60
Current(MA): 15
Power(W): 2.8
Flow(L/mini）: 3~6
Pressure(Kpa): 12-25
Noise(dB): <32
RH-80 mini pump
size: 114.6x63x54.2
Voltage(V): 12/24 100~240
Current(MA):34
power(W): 4
Flow(L/min): 8~15

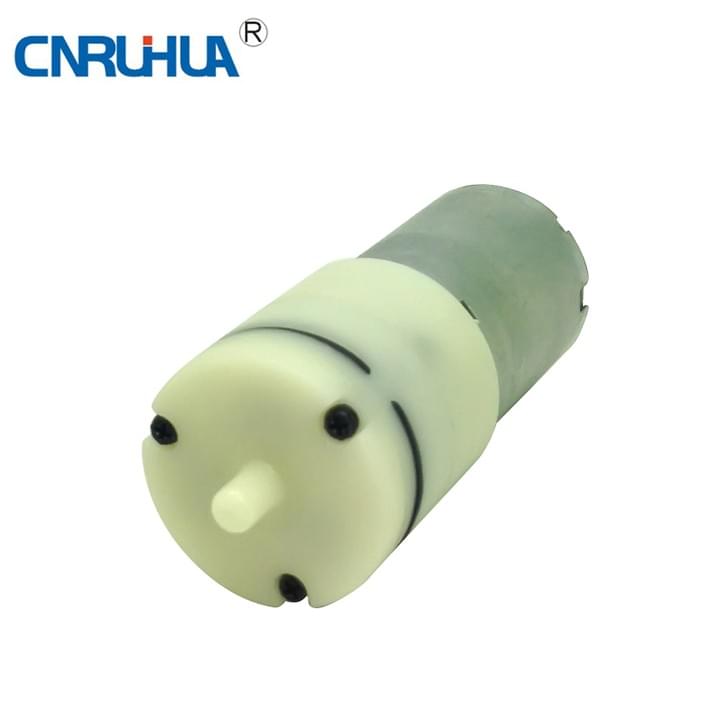

model FW-100
Voltage: DC6V 12V 24V
Current: 380mA@6V、250mA@12V、150mA@24V
Max pressure: >525mmHg(70KPa)
Airtight: <3mmHg/minute
Flow: >2.0L/Min
Noise: <60dB
Pipe Diameter: Φ4.2mm
Dimension: Φ27*58mm
Application: small applicances

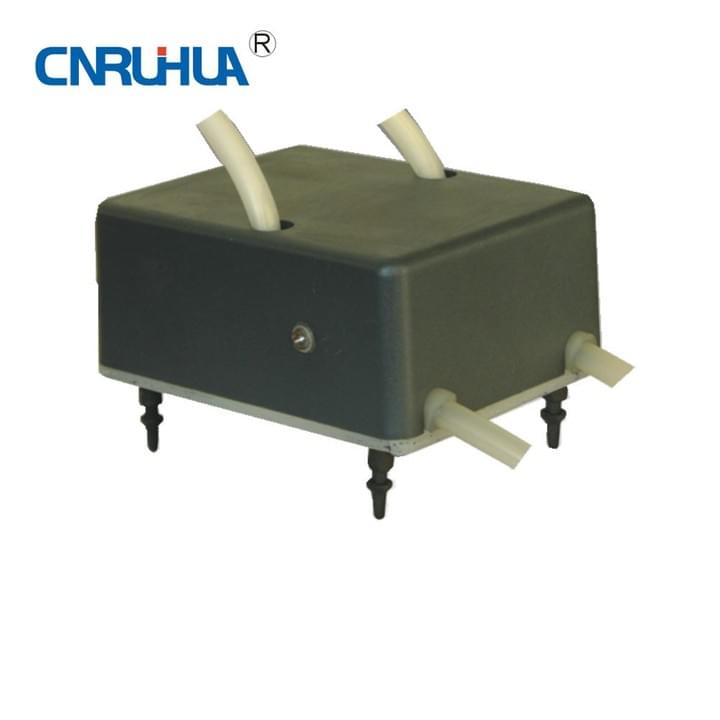

RH-15 vacuum pump
Size(mm): 106x103x48
Voltage(V): 12/24 100~240
Frequency(HZ): AC DC 50/60
Current(MA): 24
Power(w): 4.5
Flow(L/min): 5
Pressure(Kpa): 120
Noise(dB): <32

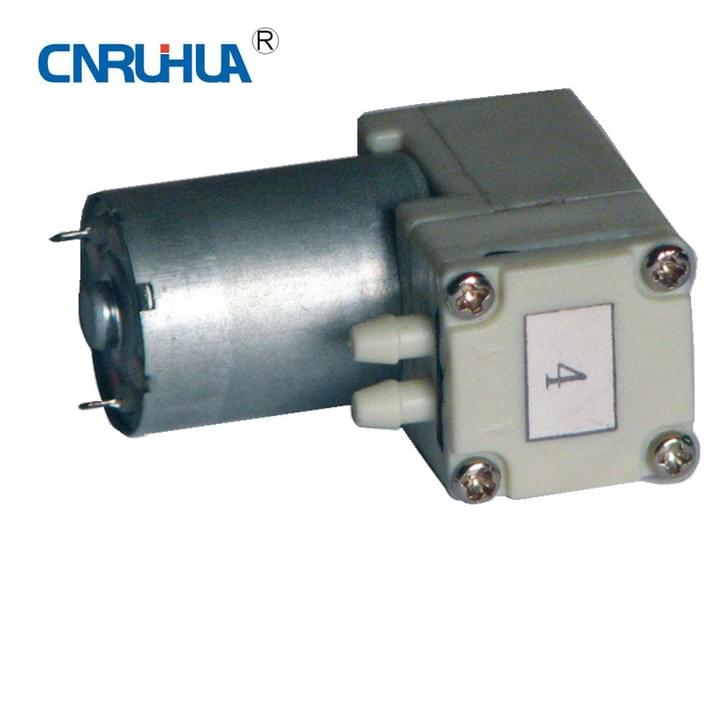

RH-20 mini pump
Size(mm): 38.3x29.3x17.5
Voltage(V): 3/6/12
Current(MA): 30
Power(W): 0.5
Flow(L/min): 0.5
Pressure(Kpa): 60
RH-60 mini pump
Size(mm): 60.5x128
Voltage(V): 6/12/24
Frequency(HZ): DC
Current(MA): 1400
Power(W): 16
Flow(L/min): 14
Pressure(Kpa): 80
Noise(dB): <32

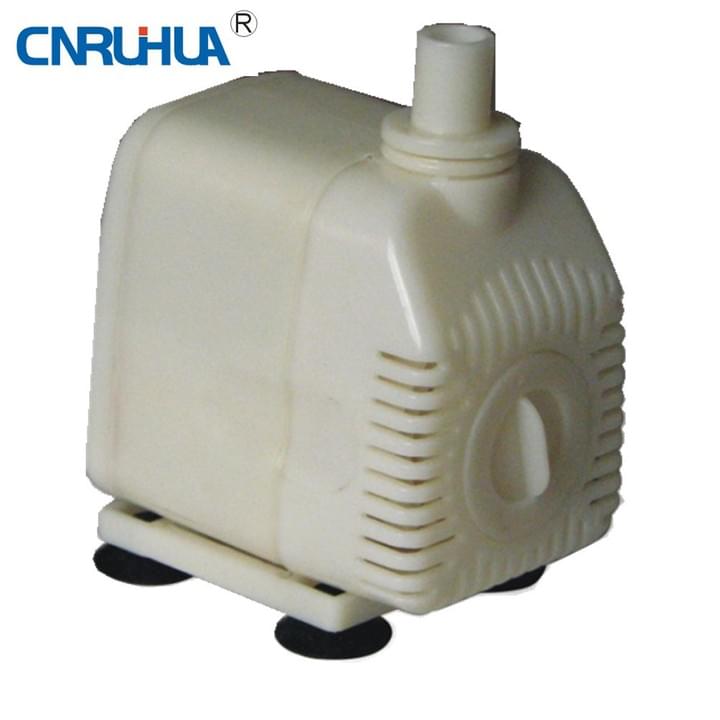

RH-S1500 water pump
Size(mm): 96x80x72
Voltage(V): 220
Frequency(HZ): 50
Current(MA): 85
Power(W): 18
Flow(L/H): 1000
Higher(M): 2
Noise(dB): <40
Two-way air pump, hand pump, swimming pool hand pump, swimming ring inflatable bed, air pump, air pump
material: PVC
size: 30x10.5x10.5cm
application :Inflatable use of inflatable products, suitable for indoor and outdoor
RH-77 12VDC 220VAC 110VAC 3L/min mini air pump
3.00 - 3.17air pump voltage :12vdc, or 220VAC or 110VAC available
air pump flow :3L/minView more details...Add to cartSelectQuantityMini Ozone Generator FW-120 for portable CPAP sanitizing device
12.77Ozone output: 200-400mg/hr
Voltage :12VDC
Power :2.16W
Weight :0.06kg
Dimension :3.15x8.5x5cm
Application :Air purifier ,Wtaer purifierView more details...Add to cartQuantityHome Tap Ozone Water Purifier
44.16Power Generator :Water power three-phase alternator
Output power :3~4.5W
O3 Water Consistency :0.3~0.45MPa
Main Material : ABS Resin Casing
Weight :0.48kg
Dimensions : 16.3X15X8cmView more details...Add to cartQuantity110VAC 220VAC Tube Type 3g/hr， 5g/hr ，7g/hr， Ozone Generator For Water Purifier And Air purifier
100.08 - 162.54Voltage :220VAC/110VAC
Power：60W,80W,95W
Ozone output :3g/hr 5g/hr 7g/hr
Application :47x22x30cm
Ozone Generator For Water Purifier And Air purifierView more details...Add to cartSelectQuantityMultifunction Car Household Ozone generator for air purifier
26.89Ozone output :200-400mg/hr
VOltage :110VAC/220VAC
Time Set :0-15mins
Power :2.16L/min
Weight :1.18kg
Dimension :23x9x16.5cm
Application：Air purifier Water purifierView more details...Add to cartQuantityRH208 Home Ozone generator for Air Purifier
34.10Ozone output :200-400mg/hr
Voltage :220VAC or 110VAC
Time set :5mins,10mins,15mins
Power :2.16W
Pump flow :2.15L/min
Weight :0.88kg
Dimension :23x11.5x10cm
Application :Air purifier Water purifierView more details...Add to cartQuantityCar Air Purifier And Mobile Phone Charger-RH-366
34.10Power :5-6W
Frequency :50-60HZ
USB charge port voltage :5V DC
Anion output : >5000,000m³
Ozone output：50-100mg/hr
The range of using : <30㎡View more details...Add to cartSelectQuantity220VAC 110VAC Plate 10g,20g,30g,Ozone Generator for air purifier
80.00 - 130.00voltage :220VAC/110VAC
Ozone output :10g,20g,30g
This type of ozone generator is suitable only for air purifiersView more details...Add to cartSelectQuantity220vac 500mg mini Ozone Generator for air sterlization and water sterlization
7.07Voltage: 220VAC
Ozone Yield: 500mg / h-800mg/hr ;
Net/GrossWeight: 0.3kg/0.4kg.
Working Principle:
Take advantage of high voltage, use oxygen in the air as raw material to produce O3.
Function:
a. The residual hormones, antibiotics, bacteria and germs on the surface of fruits and vegetables can be fully degraded. Having it, you can rest assured that eat fruits, vegetables, fish, meat, seafood, the flavor will be even more delicious.
b. It can also be used in drinking water, tableware, daily necessities, for disinfection and prevention of many diseases.
PET ROOM,Fish Tank tank,Spa pool,View more details...Add to cartQuantity2g Tube-Type Ozone Generator
11.37Power Supply Size :152*47*44mm
Ceramic Chip Size :160*51*55mm
lnput Voltage :220V/110v
Output Voltage :3.1kV
power :30W
Frequency :3khzAdd to cartQuantity1g/hr 2g/hr,3g/hr,5g/hr,10g/hr ,Ozone tube ozone genrator
6.17 - 23.522g ozone tube size :170*outside diameter 45mm
2g power supply size :50mm*55mm*140mm
power :35w 220VAC
3g ozone tube size :200*outside diameter 45mm
5g ozone tube size : 250*outside diameter 45mm
10g ozone tube size : 300*outside diameter 45mm
10g power supply size :50mm*55mm*140mm
Electrode material : quartz tubeView more details...Add to cartSelectQuantityplate 220VAC 5g/hr, 10g/hr, 20g/hr Ozone Generator With Fan
13.89 - 31.77Voltage : 220VAC
Ozone Output : 5g/hr,10g/hr,20g/hr
power : 60W, 100W, 200W,
ozone output size:170*120*125mmAdd to cartSelectQuantity
